Seamless Transition: Migrating IPsec VPN from Cisco ASA to FortiGate

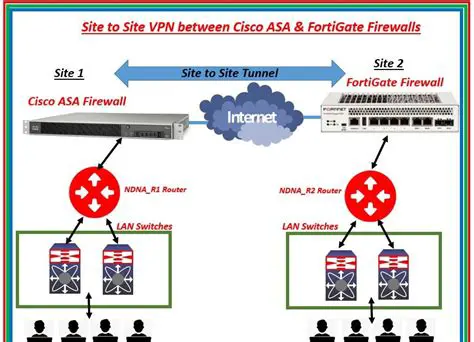

In today’s dynamic cybersecurity landscape, organizations frequently undertake the process of modernizing their network infrastructure. A common scenario involves migrating from established platforms like Cisco ASA to more agile, feature-rich solutions such as FortiGate firewalls. One of the most critical and often complex components of such a migration is the IPsec VPN configuration. IPsec VPNs are the backbone of secure remote access and site-to-site connectivity, making their flawless transition paramount to maintaining business continuity. This article serves as a comprehensive guide for IT professionals and network administrators tasked with navigating the intricacies of migrating an IPsec VPN from Cisco ASA to FortiGate. We will delve into the technical nuances, identify potential pitfalls, and outline a structured approach to ensure a smooth, secure, and successful migration.

Undertaking a Cisco ASA to FortiGate IPsec VPN migration is more than just a configuration translation; it’s a strategic move that can enhance your network’s security posture, simplify management, and potentially reduce operational costs. While both platforms are leaders in network security, their command syntaxes and architectural philosophies for VPNs differ significantly. Cisco ASA traditionally relies on crypto map and tunnel-group constructs, whereas FortiGate employs a more object-oriented approach with distinct phase1-interface and phase2-interface configurations, integrated seamlessly with firewall policies. Understanding these fundamental differences is the first step towards a successful transition. Our goal is to equip you with the knowledge to not only translate existing configurations but also to optimize them for the FortiGate environment, leveraging its robust feature set. We’ll explore everything from initial planning and data gathering to the meticulous translation of IKE phases, firewall policies, and the crucial steps of implementation, testing, and troubleshooting. By the end of this guide, you will have a clear roadmap to confidently execute your IPsec VPN migration with minimal disruption and maximum security.

Understanding the Core Technologies: Cisco ASA vs. FortiGate IPsec VPN

When embarking on a Cisco ASA to FortiGate IPsec VPN migration, a foundational understanding of how each platform handles IPsec VPNs is absolutely critical. While both Cisco ASA and FortiGate provide robust IPsec VPN capabilities, their underlying methodologies, command structures, and conceptual frameworks vary significantly. This disparity necessitates careful planning and a methodical approach to translation, rather than a simple one-to-one copy of settings. Cisco ASA, for decades a cornerstone in network security, often uses a more command-line interface (CLI) centric approach, particularly for complex VPN configurations. Its IPsec VPN setup typically revolves around crypto map entries, which bind VPN parameters to an interface, and tunnel-group definitions, which define peer-specific authentication and connection attributes. The crypto ikev1 policy or crypto ikev2 policy commands define the IKE Phase 1 proposals (encryption, hashing, DH group, lifetime), while crypto ipsec transform-set specifies the IPsec Phase 2 proposals (encryption, hashing, PFS, lifetime).

In contrast, FortiGate firewalls, known for their comprehensive security fabric and intuitive graphical user interface (GUI), structure their IPsec VPNs using distinct Phase 1 (IKE) and Phase 2 (IPsec) configurations, often managed through named objects. A FortiGate IPsec VPN migration will involve creating Phase 1 objects that define the remote gateway, authentication method (pre-shared key or certificate), IKE version (IKEv1 or IKEv2), DH group, encryption, and hashing algorithms, along with the key lifetime. Following this, Phase 2 objects are configured, specifying the local and remote subnets (known as selectors or proxy IDs), IPsec encryption and authentication algorithms, Perfect Forward Secrecy (PFS) settings, and IPsec key lifetime. Beyond the VPN tunnel itself, FortiGate heavily relies on firewall policies to permit traffic through the VPN tunnel, which is a crucial difference from ASA, where access-list definitions for crypto map often dictate ‘interesting traffic’ and implicitly allow it, though separate ACLs for intra-VPN traffic are also common. Understanding these architectural nuances is paramount for a successful Cisco ASA to FortiGate IPsec VPN migration, ensuring that all aspects of security and connectivity are properly translated and optimized for the new environment. The FortiGate approach, while initially different, often leads to more granular control and clearer policy enforcement once understood.

Phase 1: Planning and Preparation for Your Migration

The success of any significant network infrastructure change, especially a Cisco ASA to FortiGate IPsec VPN migration, hinges heavily on meticulous planning and thorough preparation. This initial phase is not merely about gathering information; it’s about understanding the existing environment, identifying potential challenges, and laying a solid foundation for a seamless transition. Rushing this stage often leads to costly errors, prolonged downtime, and security vulnerabilities. The first critical step is to perform a comprehensive inventory of your existing Cisco ASA IPsec VPN configurations. This involves extracting every relevant detail from the ASA’s running configuration. Key information to collect includes, but is not limited to: the show running-config crypto map, show running-config tunnel-group, show running-config access-list associated with VPNs, and show running-config nat commands. You’ll need to identify each remote VPN peer (IP address or FQDN), the associated pre-shared key (PSK) or certificate details, and critically, the IKE (Phase 1) and IPsec (Phase 2) parameters.

For IKE Phase 1, document the encryption algorithms (e.g., AES-256, 3DES), hashing algorithms (e.g., SHA-256, MD5), Diffie-Hellman (DH) group (e.g., Group 5, Group 2), and the key lifetime. Similarly, for IPsec Phase 2, record the encryption algorithms, hashing algorithms, whether Perfect Forward Secrecy (PFS) is enabled and its corresponding DH group, and the IPsec key lifetime. Crucially, map out the local and remote network subnets that are permitted to traverse each VPN tunnel. These are often defined by access-list entries referenced in the crypto map and are known as proxy IDs or traffic selectors in FortiGate terminology. Pay close attention to any Network Address Translation (NAT) rules that might be applied to VPN traffic on the ASA (e.g., nat 0 access-list for identity NAT or more complex NAT configurations). The presence of NAT can significantly impact the FortiGate configuration, requiring corresponding IP Pool and Central NAT or Policy NAT rules. Furthermore, identify the specific interface on the ASA through which the VPN traffic egresses, as this will inform the interface selection on the FortiGate. Before making any changes, always back up the current Cisco ASA configuration to ensure a swift rollback capability if unforeseen issues arise. This detailed documentation, organized into a clear translation matrix, will be your invaluable blueprint for the subsequent FortiGate configuration steps, significantly streamlining the IPsec VPN migration process and mitigating risks.

Phase 2: Translating Cisco ASA Configuration to FortiGate

With a comprehensive inventory of your existing Cisco ASA IPsec VPN configurations in hand, the next critical phase involves the meticulous translation of these settings into their FortiGate equivalents. This step requires a thorough understanding of both platforms’ terminologies and operational models. The goal is not just to replicate functionality but to optimize it for the FortiGate environment. The Cisco ASA to FortiGate IPsec VPN migration becomes a structured process of matching security parameters and connectivity rules.

Translating IKE Phase 1 Parameters

The first step in the translation process focuses on the Internet Key Exchange (IKE) Phase 1 parameters, which establish the secure management channel for the IPsec tunnel. On Cisco ASA, these are typically defined within a crypto ikev1 policy or crypto ikev2 policy. You’ll have documented parameters such as the encryption algorithm, hashing algorithm, Diffie-Hellman (DH) group, and lifetime. For instance, an ASA configuration might look like:

crypto ikev2 policy 10
 encryption aes-256
 integrity sha256
 group 5
 prf sha256
 lifetime seconds 86400

When performing the IPsec VPN migration to FortiGate, you will configure a new Phase 1 entry. Here, you’ll map each documented ASA parameter directly. The encryption (aes256), authentication (sha256), DH group (5), and key lifetime (86400) are selected within the FortiGate Phase 1 configuration. You’ll also specify the IKE version (v1 or v2) to match the ASA. Crucially, the authentication method (e.g., pre-shared key) and the remote gateway’s IP address or FQDN are also configured here. Ensure the pre-shared key exactly matches on both ends. FortiGate’s GUI makes this mapping straightforward, allowing you to select from dropdown menus for algorithms and groups, while the CLI offers precise command input. For example, a FortiGate Phase 1 configuration might involve setting ike-version 2, peertype static, remote-gw X.X.X.X, psksecret YOUR_PSK, and then within the p1-proposal defining encrypt-alg aes256, auth-alg sha256, dhgrp 5, and keylife 86400. Consistency in these parameters is paramount for the tunnel to establish correctly during the Cisco ASA to FortiGate IPsec VPN migration.

Translating IKE Phase 2 Parameters

Following a successful Phase 1 configuration, the next step in the IPsec VPN migration is to translate the IKE Phase 2 (IPsec) parameters. These settings define how the actual data traffic will be encrypted and authenticated within the established secure tunnel. On Cisco ASA, IPsec proposals are typically defined using crypto ipsec transform-set, which specifies the encryption and hashing for the IPsec tunnel. An example ASA transform-set might be:

crypto ipsec transform-set MyTransformSet esp-aes-256 esp-sha256-hmac
 mode tunnel
crypto map MyCryptoMap 10 ipsec-isakmp
 set transform-set MyTransformSet
 set pfs group5
 set security-association lifetime seconds 3600
 match address VPN_ACL

For FortiGate, you will create a Phase 2 entry linked to your previously configured Phase 1. Within this Phase 2 configuration, you will select the IPsec encryption algorithm (e.g., aes256) and authentication algorithm (e.g., sha256) that directly correspond to your ASA’s transform-set. If Perfect Forward Secrecy (PFS) was enabled on the ASA (e.g., set pfs group5), you must enable it on the FortiGate Phase 2 and specify the matching DH group (group5). The IPsec key lifetime (e.g., 3600 seconds) also needs to be consistent. A critical part of Phase 2 translation involves defining the selectors, often referred to as proxy IDs or interesting traffic in ASA terms. On the ASA, these are specified by an access-list (e.g., VPN_ACL) referenced in the crypto map, defining which local and remote subnets are permitted to use the VPN tunnel. On FortiGate, you will explicitly define the local-subnet and remote-subnet within the Phase 2 configuration, ensuring they exactly match the source and destination networks specified in the ASA’s VPN_ACL. Any mismatch here will prevent traffic from flowing through the tunnel. If multiple subnets or a complex set of traffic selectors exist on the ASA, you might need to create multiple Phase 2 entries on the FortiGate or use broader summary routes, always ensuring the remote peer agrees. This meticulous attention to detail in Phase 2 is fundamental for a successful IPsec VPN migration.

FortiGate Specifics: Interface, Policies, Routes, and NAT

Beyond the IKE Phase 1 and Phase 2 configurations, a successful Cisco ASA to FortiGate IPsec VPN migration requires careful attention to several FortiGate-specific elements that are integral to the VPN’s functionality. Unlike Cisco ASA’s implicit crypto map processing, FortiGate mandates explicit firewall policies and routing entries for VPN traffic. First, you must select the correct FortiGate interface to bind the VPN to. This is typically your external (WAN) interface. When creating the Phase 1 configuration, you’ll specify this interface. Next, and this is a crucial differentiator, you need to create specific firewall policies to permit traffic through the IPsec VPN tunnel. A common scenario involves two policies: one from your internal network (e.g., LAN interface) to the VPN tunnel interface (which is automatically created when you configure the Phase 1 tunnel) and another from the VPN tunnel interface back to your internal network. These policies must specify the correct source and destination addresses (your local subnets and the remote VPN subnets), services, and actions (e.g., ACCEPT). Without these explicit policies, even a perfectly established VPN tunnel will not pass traffic.

Additionally, static routes are often required on the FortiGate to direct traffic destined for the remote VPN subnet through the IPsec tunnel. You’ll create a static route where the destination is the remote VPN subnet and the gateway is the IPsec VPN interface (e.g., VPN_NAME or tunnel_name). Finally, NAT considerations are paramount. If your Cisco ASA configuration included NAT rules for VPN traffic (e.g., nat 0 access-list for no-NAT or more complex source/destination NAT), these must be replicated on the FortiGate. FortiGate offers flexible NAT options, including Policy NAT within firewall policies or more centralized Central NAT rules. If identity NAT (no NAT) was used on the ASA, ensure NAT is disabled in the relevant FortiGate firewall policies. If specific source or destination NAT was applied, you’ll need to create corresponding IP Pools and apply them in your firewall policies. Misconfigured NAT, routes, or missing firewall policies are among the most common reasons for IPsec VPN tunnels to establish but fail to pass traffic during a Cisco ASA to FortiGate IPsec VPN migration, emphasizing the need for meticulous configuration and testing of these FortiGate-specific components.

Phase 3: Implementation and Testing

The implementation and testing phase is where your detailed planning and configuration translation for the Cisco ASA to FortiGate IPsec VPN migration come to life. This stage demands precision, a structured approach, and vigilant monitoring to ensure that the newly configured VPN tunnels on the FortiGate are fully functional and secure. Begin by configuring the FortiGate, either through its intuitive GUI or the powerful CLI, based on the translation matrix you meticulously prepared. It’s often beneficial to configure one VPN tunnel at a time, especially for complex deployments, allowing for isolated testing and troubleshooting. Once the Phase 1 and Phase 2 entries are created, along with the necessary firewall policies and static routes, it’s time to initiate testing. Do not disable the existing Cisco ASA VPN until you have thoroughly validated the FortiGate connection.

Initial testing should involve attempting to establish the VPN tunnel. On the FortiGate, navigate to Monitor > IPsec Monitor to observe the tunnel status. A green status indicator for both Phase 1 and Phase 2 indicates a successful tunnel establishment. If the tunnel fails to come up, the FortiGate logs (found under Log & Report > Event Log > VPN Events) are your primary resource for troubleshooting. Common Phase 1 issues include mismatched pre-shared keys, incorrect remote gateway IP addresses, or mismatched IKE proposals (encryption, hashing, DH group, IKE version). Phase 2 issues often stem from mismatched proxy IDs (local/remote subnets), incorrect PFS settings, or IPsec proposals. Once the tunnel is up, perform connectivity tests. Start with simple ping commands from a host behind the FortiGate to a host on the remote VPN network, and vice-versa. If ping fails, investigate firewall policies on both the FortiGate and the remote peer, ensuring that ICMP traffic is explicitly permitted. Utilize FortiGate’s built-in diagnostic tools like diagnose sniffer packet to capture traffic on the relevant interfaces (WAN, VPN tunnel interface, internal interface) to verify packet flow and identify any drops. A traceroute can also reveal where traffic is failing to pass. Systematically test all defined subnets and services that are expected to traverse the VPN. For critical applications, arrange for application-level testing with users or application owners to confirm full functionality. A phased cutover strategy is highly recommended. This might involve temporarily redirecting a small subset of traffic to the new FortiGate VPN, or scheduling a maintenance window for a complete switch-over. Always have a rollback plan ready, detailing the steps to revert to the Cisco ASA VPN in case of unforeseen issues, ensuring minimal business disruption during your IPsec VPN migration.

Best Practices for a Smooth Cisco ASA to FortiGate IPsec VPN Migration

To ensure a truly smooth and successful Cisco ASA to FortiGate IPsec VPN migration, adhering to a set of best practices extends beyond mere technical configurations. These practices encompass planning, documentation, risk mitigation, and ongoing management, collectively minimizing downtime and enhancing the overall security posture. First and foremost, comprehensive documentation is paramount. Before, during, and after the migration, maintain detailed records of the existing ASA configuration, the translated FortiGate configuration, any design decisions made, and the results of all testing. This documentation serves as an invaluable reference for future troubleshooting, audits, and subsequent changes. A migration playbook should be developed, outlining every step, every command, and every expected outcome, which becomes critical when multiple tunnels or complex network environments are involved in the IPsec VPN migration.

Secondly, robust change management procedures must be followed. Any changes to production systems, especially those as critical as VPNs, should be communicated to stakeholders, scheduled during off-peak hours, and approved through official channels. This proactive communication mitigates surprises and ensures support is available if issues arise. Develop a meticulous testing plan that covers all aspects of connectivity: tunnel establishment, IP reachability (ping, traceroute), application-level functionality, and performance under expected load. Don’t rely solely on basic ping tests; ensure business-critical applications function correctly over the new VPN. Equally important is a clearly defined rollback plan. In the event of critical failures, knowing exactly how to revert to the previous Cisco ASA VPN configuration can prevent prolonged outages. This plan should be tested in a non-production environment if possible, ensuring its viability.

Consider performance optimization during the migration. While translating configurations, evaluate if the existing encryption and hashing algorithms are still appropriate or if an upgrade to stronger, more efficient algorithms (e.g., AES-256-GCM, SHA-512, higher DH groups) is warranted and supported by both endpoints. FortiGate devices often have dedicated hardware acceleration for IPsec, which can significantly improve throughput compared to older ASA models. Finally, after the IPsec VPN migration is complete, perform a thorough security hardening review of the FortiGate. This includes disabling unused services, applying the principle of least privilege to firewall policies, enabling logging and monitoring for VPN events, and ensuring firmware is up-to-date. By embracing these best practices, organizations can navigate the complexities of a Cisco ASA to FortiGate IPsec VPN migration with confidence, leading to a more secure, efficient, and resilient network infrastructure.

Conclusion

Successfully executing a Cisco ASA to FortiGate IPsec VPN migration is a significant undertaking that, while challenging, offers substantial benefits in terms of enhanced security, simplified management, and access to a broader range of next-generation firewall capabilities. This comprehensive guide has walked through the essential phases, from understanding the fundamental differences between Cisco ASA and FortiGate VPN architectures to the critical steps of meticulous planning, detailed configuration translation, rigorous testing, and the adoption of robust best practices. We emphasized that a successful IPsec VPN migration is not merely a technical task but a strategic project requiring careful consideration of every parameter, from IKE Phase 1 and Phase 2 proposals to FortiGate-specific firewall policies, routing, and NAT configurations.

The journey from Cisco ASA’s crypto map and tunnel-group constructs to FortiGate’s object-oriented phase1-interface and phase2-interface configurations, integrated with explicit firewall policies, demands precision and a systematic approach. By diligently documenting existing settings, performing a thoughtful translation, and adhering to a structured implementation and testing methodology, network administrators can ensure a seamless transition with minimal disruption to business operations. Remember, the key to avoiding common pitfalls lies in exhaustive preparation, continuous monitoring, and the readiness of a well-defined rollback plan. Embracing these principles for your Cisco ASA to FortiGate IPsec VPN migration will not only establish secure and reliable connectivity but also empower your organization with a modern, agile, and resilient network security posture, ready to face the evolving threat landscape.
