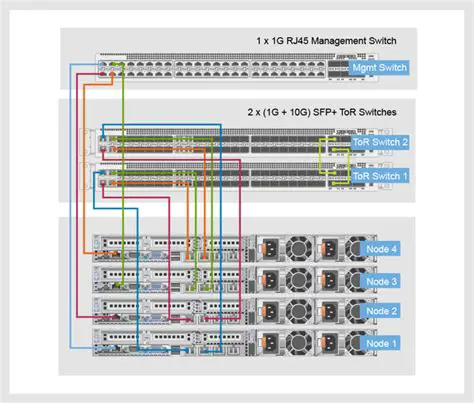

Configuring iOS on Cisco Switches: A Comprehensive Guide

Configuring iOS on Cisco switches is a fundamental skill for any network administrator. This guide provides a comprehensive overview of the process, from initial setup to advanced configuration and troubleshooting. We will delve into the essential commands, best practices, and practical examples to help you master Cisco IOS (Internetwork Operating System) on your switches. Understanding the nuances of iOS configuration is crucial for ensuring network stability, security, and optimal performance. This article will equip you with the knowledge and skills necessary to confidently manage and maintain your Cisco switch infrastructure. By mastering these concepts, you’ll be able to effectively deploy, monitor, and troubleshoot your network, ultimately contributing to a more reliable and efficient IT environment. The world of networking relies heavily on these principles, and a strong understanding of iOS is the cornerstone of Cisco switch management. This knowledge will serve as a building block for more complex networking tasks and contribute to your overall expertise in the field. From the initial stages of connecting a new switch to configuring VLANs and implementing security protocols, every step is important.

Initial Setup and Basic Configuration

Initial setup and basic configuration of a Cisco switch are the first steps toward building a functional network. This process involves accessing the switch’s command-line interface (CLI) and configuring essential settings such as the hostname, management IP address, and basic security measures. Before diving into the configuration, you’ll need physical access to the switch. Connect to the switch console port using a console cable (usually a serial-to-RJ45 cable) and a terminal emulator program like PuTTY, Tera Term, or SecureCRT. Once connected, you can begin the configuration. The initial configuration is often done using the command line interface (CLI) to configure the switch. The console cable allows you to connect directly to the switch, even if the network is not yet configured. The console cable provides a direct link to the device, letting you troubleshoot without network access. Once connected, you’ll likely be greeted with a prompt. The default login is typically no password, so you can press ‘Enter’ to access the enable mode by using the command ‘enable’, then type the enable password. This mode grants access to higher-level configuration commands. The next step involves setting the hostname, which uniquely identifies the switch on your network. Use the hostname command in global configuration mode (accessed by the command configure terminal) followed by the desired hostname. For example: hostname MySwitch. Next, configure the management IP address. This allows you to remotely access and manage the switch via a web browser or SSH client. You will configure the IP address, subnet mask, and default gateway. Use the interface vlan 1 command to enter interface configuration mode for VLAN 1, which is the default management VLAN. Then, assign the IP address using the command ip address [IP_ADDRESS] [SUBNET_MASK]. For example: ip address 192.168.1.10 255.255.255.0. Finally, configure the default gateway, which enables communication with other networks. Use the ip default-gateway [GATEWAY_IP_ADDRESS] command in global configuration mode. These steps are critical for the initial setup. Ensuring the switch can communicate with other devices on the network.

Setting the Hostname and Console Access

Setting the hostname and securing console access are essential security practices when configuring a Cisco switch. This section guides you through the process of setting a descriptive hostname and configuring secure access to prevent unauthorized access. The hostname should reflect the switch’s location or purpose. This makes it easier to identify and manage the switch within the network. To set the hostname, enter global configuration mode using the configure terminal command and then use the hostname command followed by the desired name. For example, hostname CoreSwitch-BuildingA. It’s important to set a strong enable secret password. This password encrypts the password and provides a more robust security measure. Use the enable secret [PASSWORD] command in global configuration mode. For example, enable secret cisco123. The console access should also be secured to prevent unauthorized access to the switch. The console port is the physical port that allows direct access to the CLI via a console cable. To configure a password, enter line configuration mode for the console port with line con 0 and then set the password. Then, you can also add login attempts to prevent brute-force attacks. Use the password [PASSWORD] command followed by the login command. For instance, password cisco and then login. For added security, you can also set an idle timeout on the console. This will automatically disconnect idle sessions. Use the exec-timeout [MINUTES] [SECONDS] command in line con configuration mode. For instance, exec-timeout 5 0. Setting up a proper login will provide greater security when setting up a network. Securing these elements helps protect the switch. This enhances the security posture.

Configuring IP Addressing and Management Access

Configuring IP addressing and management access is a critical step in making your Cisco switch accessible over the network. This involves assigning an IP address to the switch’s management interface (typically VLAN 1), configuring the subnet mask, and setting the default gateway to allow communication with other networks. First, enter global configuration mode using the configure terminal command. Then, access the interface configuration mode for the management VLAN (VLAN 1) using the interface vlan 1 command. After you enter the interface, you can then assign an IP address to the VLAN 1 interface using the ip address [IP_ADDRESS] [SUBNET_MASK] command. For example, ip address 192.168.1.100 255.255.255.0. Next, configure the default gateway, which enables the switch to communicate with devices on other networks. Use the ip default-gateway [GATEWAY_IP_ADDRESS] command in global configuration mode. For example: ip default-gateway 192.168.1.1. To verify the IP configuration, you can use the show ip interface brief command from privileged EXEC mode. This command displays a summary of the IP addresses assigned to the switch’s interfaces. Another essential configuration step is enabling remote management access, which allows you to manage the switch remotely using protocols such as SSH or Telnet. Secure Shell (SSH) is preferred as it encrypts the traffic. To configure SSH, you need to set up a domain name and generate the crypto keys. First, set the domain name using the ip domain-name [DOMAIN_NAME] command in global configuration mode. Then, generate the RSA keys using the crypto key generate rsa command. Choose a modulus size of at least 1024 bits for stronger security (e.g., 1024). Finally, enable SSH using the ip ssh version 2 command. You can then test the SSH connection using an SSH client. These steps set up management access.

VLAN Configuration

VLAN configuration on Cisco switches allows you to segment your network into logical groups, improving security, performance, and manageability. VLANs (Virtual LANs) allow you to create separate broadcast domains within a single physical network infrastructure. Understanding how to create, assign ports to, and configure VLANs is essential for efficient network design and operation. To begin configuring VLANs, enter global configuration mode using the configure terminal command. Then, create a VLAN using the vlan [VLAN_ID] command, where VLAN_ID is a number between 1 and 4094. For example, vlan 10. Assign a descriptive name to the VLAN using the name [VLAN_NAME] command. For example, name Sales. To assign ports to a VLAN, you need to enter interface configuration mode for each port. Use the interface [INTERFACE_TYPE] [INTERFACE_NUMBER] command, where the interface type can be FastEthernet or GigabitEthernet, and the number is the port number (e.g., FastEthernet 0/1). In the interface configuration mode, set the port to access mode and assign it to the desired VLAN using the switchport mode access and switchport access vlan [VLAN_ID] commands. For example, switchport mode access and switchport access vlan 10. If you want to configure a trunk port, which allows multiple VLANs to pass through a single port, configure the interface as a trunk port and specify the allowed VLANs. Use the switchport mode trunk command to make a trunk port. Then, use the switchport trunk allowed vlan [VLAN_ID] command to specify which VLANs are allowed on the trunk. You can also specify all the VLANs by using switchport trunk allowed vlan all. To verify the VLAN configuration, use the show vlan brief command from privileged EXEC mode. This command displays a summary of all configured VLANs, including their names, status, and associated ports. Proper VLAN configuration is important.

Creating and Managing VLANs

Creating and managing VLANs on Cisco switches is the cornerstone of network segmentation and security. VLANs allow you to divide your network into logical broadcast domains, improving performance and simplifying management. Begin by entering global configuration mode using the configure terminal command. To create a VLAN, use the vlan [VLAN_ID] command, where VLAN_ID is a number between 1 and 4094. For example, vlan 20. Give the VLAN a descriptive name using the name [VLAN_NAME] command. For instance, name Marketing. Next, assign ports to the newly created VLAN. Enter interface configuration mode for each port by using the interface [INTERFACE_TYPE] [INTERFACE_NUMBER] command. For example, interface GigabitEthernet 0/1. Then, set the port to access mode using the switchport mode access command. Finally, assign the port to the VLAN using the switchport access vlan [VLAN_ID] command. For example, switchport access vlan 20. To manage VLANs, you can modify existing VLAN configurations. To change a VLAN name, enter the VLAN configuration mode using the vlan [VLAN_ID] command and then use the name [NEW_VLAN_NAME] command. You can also delete VLANs, but be careful as this will remove all associated port assignments. To delete a VLAN, enter global configuration mode and use the no vlan [VLAN_ID] command. For instance, no vlan 20. To verify the VLAN configuration, use the show vlan brief command. This command provides a summary of all configured VLANs, including their names, status, and associated ports. It’s also useful to know how to trunk, which allows multiple VLANs to pass through a single port. Proper VLAN design and configuration will impact the overall security of your network. Configuring this step correctly will help streamline the network.

Trunking Configuration

Trunking configuration on Cisco switches is a vital technique for carrying traffic from multiple VLANs over a single link, commonly used between switches or between a switch and a router. This configuration enables efficient communication and resource utilization within your network. To configure a trunk, you need to set up the appropriate settings on both sides of the link. First, access the interface configuration mode of the port you want to configure as a trunk using the interface [INTERFACE_TYPE] [INTERFACE_NUMBER] command. For instance, interface GigabitEthernet 0/2. Then, configure the port as a trunk using the switchport mode trunk command. This tells the switch to allow the port to carry traffic from multiple VLANs. Next, you need to specify which VLANs are allowed to pass through the trunk. By default, all VLANs are allowed. You can explicitly specify the allowed VLANs using the switchport trunk allowed vlan [VLAN_ID_LIST] command. For example, to allow VLANs 10, 20, and 30, use switchport trunk allowed vlan 10,20,30. If you want to allow all VLANs, you can use the switchport trunk allowed vlan all command. Additionally, consider configuring the native VLAN. The native VLAN is the VLAN that will be untagged when sent across the trunk link. By default, the native VLAN is VLAN 1. You can change the native VLAN using the switchport trunk native vlan [VLAN_ID] command. For security reasons, it’s best practice to use a VLAN other than VLAN 1 as the native VLAN. It is important to know the trunking protocol. The most common trunking protocols are ISL (Inter-Switch Link) and 802.1Q (also known as IEEE 802.1Q). Cisco’s older switches often used ISL, but it is now rarely used. Modern Cisco switches primarily use 802.1Q, which is an open standard. To verify the trunk configuration, use the show interfaces trunk command from privileged EXEC mode. This command displays information about the trunk ports, including the trunking mode, the allowed VLANs, and the native VLAN. This is a very important part of configuring your network.

Spanning Tree Protocol (STP) Configuration

Spanning Tree Protocol (STP) configuration is a critical component for preventing network loops in a switched network. Loops can cause broadcast storms, leading to network outages. Understanding STP and how to configure it correctly is essential for network stability and reliability. STP works by blocking redundant paths in the network, allowing only a single active path between any two devices. The switch elects a root bridge, which becomes the central point of the network’s spanning tree. Each switch then calculates its shortest path to the root bridge and determines which ports should be in a forwarding state and which should be in a blocking state. To configure STP, you generally don’t need to perform extensive configuration on a basic level. STP is enabled by default on Cisco switches. However, you can adjust some parameters to optimize its performance and behavior. You can configure the root bridge using the spanning-tree vlan [VLAN_ID] root primary command on the desired switch. This tells the switch to become the root bridge for the specified VLAN. Similarly, you can set a secondary root bridge to take over if the primary root bridge fails. Use the spanning-tree vlan [VLAN_ID] root secondary command. You can also adjust the STP timers to speed up convergence, the process by which the network reconfigures itself after a topology change. The default STP timers can be too slow for modern networks. The spanning-tree vlan [VLAN_ID] hello-time [SECONDS] command sets the hello time, and the spanning-tree vlan [VLAN_ID] forward-time [SECONDS] command sets the forward delay, while the spanning-tree vlan [VLAN_ID] max-age [SECONDS] command sets the max age. Lowering these values can help speed up convergence, but be careful not to make them too low, which can cause instability. PortFast is a feature that allows a port to immediately transition to the forwarding state when it connects to an end device. This is useful for ports connected to end devices like computers or printers, as it can speed up the boot process. You can enable PortFast on an interface using the spanning-tree portfast command in interface configuration mode. To verify the STP configuration, you can use the show spanning-tree command from privileged EXEC mode. This command displays information about the STP status, including the root bridge, the designated ports, and the port states. This is a vital protocol for understanding the structure of your network.

Understanding STP Concepts

Understanding Spanning Tree Protocol (STP) concepts is fundamental to designing and managing a resilient network. STP prevents network loops, which can bring down a network. The goal is to provide a loop-free topology across a switched network. The core concept behind STP is the blocking of redundant paths within a switched network. When switches are connected in a way that creates loops, STP comes into play. It selects one switch as the root bridge, which is the central point in the STP topology. Then, STP determines the shortest path from each switch to the root bridge. Ports on other switches that are not on the shortest path are placed in a blocking state to eliminate loops. STP operates by exchanging Bridge Protocol Data Units (BPDUs) between switches. These BPDUs contain information about the network topology, including the switch’s bridge ID, port ID, and cost to reach the root bridge. Based on this information, switches determine the best path to the root bridge and decide which ports to block. Several key STP terms are essential to understand. The Root Bridge is the central point of the network. The Designated Port is the port on a segment that has the lowest path cost to the root bridge. The Root Port is the port on a switch that has the lowest path cost to the root bridge. Blocked Ports are the ports that are blocked to prevent loops. Path Cost is a value that represents the cost of traversing a link. The lower the cost, the better the path. STP undergoes various states. The states are: Blocking, Listening, Learning, Forwarding, and Disabled. Understanding these states is crucial for troubleshooting STP issues. STP has different variations, with the most common being the original STP (802.1D), Rapid STP (RSTP, 802.1w), and Multiple STP (MSTP, 802.1s). RSTP offers faster convergence than the original STP, while MSTP allows you to create multiple spanning tree instances.

Configuring STP Parameters

Configuring STP parameters allows you to optimize the performance and behavior of STP within your network. While STP is enabled by default, adjusting these parameters can help you fine-tune the protocol to meet your network’s specific needs. One of the primary configurations is selecting the root bridge. By default, the switch with the lowest bridge ID becomes the root bridge. You can manually configure a switch to become the root bridge using the spanning-tree vlan [VLAN_ID] root primary command in global configuration mode. If the primary root bridge fails, you can set a secondary root bridge using the spanning-tree vlan [VLAN_ID] root secondary command. Another important parameter to consider is the STP timers, which determine how quickly the network converges after a topology change. The default STP timers (hello time, forward delay, and max age) can be slow for modern networks. Modifying the STP timers can improve convergence times, but be cautious, as setting them too low can cause instability. You can configure the hello time using the spanning-tree vlan [VLAN_ID] hello-time [SECONDS] command, the forward delay using the spanning-tree vlan [VLAN_ID] forward-time [SECONDS] command, and the max age using the spanning-tree vlan [VLAN_ID] max-age [SECONDS] command. PortFast is a valuable feature that allows ports connected to end devices (such as computers or printers) to immediately transition to the forwarding state, bypassing the typical STP listening and learning states. This can significantly speed up the boot process for end devices. You can enable PortFast on an interface using the spanning-tree portfast command in interface configuration mode. To further optimize STP, consider using RSTP (Rapid Spanning Tree Protocol), which offers faster convergence compared to the original STP. RSTP can be enabled globally with the spanning-tree mode rapid-pvst command. You can adjust these parameters to optimize your network.

Security Configuration

Security configuration is paramount when configuring Cisco switches to protect your network from unauthorized access and potential threats. Implementing robust security measures is essential to maintaining the integrity and confidentiality of your data. This section provides a look into essential security configurations. One of the first steps in securing your switch is to configure strong passwords for privileged EXEC access and console access. Avoid using default or easily guessable passwords. Use the enable secret [PASSWORD] command in global configuration mode to set a strong enable secret password. Also, set a password for console access with the password [PASSWORD] and login commands in line con 0 configuration mode. To further enhance security, restrict access to the switch’s management interface (VLAN 1) to only authorized IP addresses or subnets. You can achieve this using access control lists (ACLs). Define an ACL that permits access from the authorized IP addresses and denies access from all others. Apply this ACL to the VLAN 1 interface using the ip access-group [ACL_NUMBER] in command. Another important security practice is to secure the switch’s ports to prevent unauthorized devices from connecting to the network. Configure port security to limit the number of MAC addresses allowed on a port and enable sticky MAC addresses. This ensures that only authorized devices can connect to the port. You can configure port security using the switchport port-security commands in interface configuration mode. Enable SSH to encrypt traffic. This is a secure protocol. You can configure this with the proper steps. By implementing these security measures, you can significantly enhance the security posture of your Cisco switch.

Port Security Implementation

Port security implementation is a crucial aspect of securing your Cisco switches and protecting your network from unauthorized access. Port security limits the number of MAC addresses that can access a port, preventing unauthorized devices from connecting. To enable port security, you need to configure the port settings in interface configuration mode. First, access the interface configuration mode for the specific port using the interface [INTERFACE_TYPE] [INTERFACE_NUMBER] command. Then, enable port security using the switchport port-security command. You can configure the maximum number of allowed MAC addresses on the port using the switchport port-security maximum [NUMBER] command. For example, to allow only one MAC address, use switchport port-security maximum 1. Then, configure how the switch should handle security violations (when unauthorized MAC addresses are detected). You can choose from three violation modes: protect, restrict, and shutdown. The protect mode simply drops the packets from the violating source MAC addresses. The restrict mode drops packets and sends SNMP traps to notify the network administrator. The shutdown mode (the most secure) shuts down the port, and the port will remain down until it is manually re-enabled by the administrator. Set the violation mode using the switchport port-security violation [VIOLATION_MODE] command. For example, switchport port-security violation shutdown. The sticky MAC address feature allows the switch to automatically learn the first few MAC addresses that connect to the port and add them to the port security configuration. This simplifies the process of configuring port security. You can enable sticky learning using the switchport port-security mac-address sticky command. The configuration will allow you to maintain port security. It will enhance your overall network security posture.

Access Control Lists (ACLs) for Management Access

Access Control Lists (ACLs) for management access provide a powerful mechanism to control and secure access to your Cisco switch’s management interface. ACLs allow you to filter network traffic based on various criteria, such as source IP addresses, destination IP addresses, and ports. This helps you to restrict access to the switch’s management interface (typically VLAN 1) to only authorized IP addresses or subnets, thus preventing unauthorized individuals from managing your network. To implement ACLs, you first need to define an ACL. In global configuration mode, use the ip access-list extended [ACL_NAME] command to create an extended ACL. Extended ACLs provide more granular control than standard ACLs. Within the ACL, you define permit and deny statements that specify which traffic is allowed or blocked. For example, to permit access from a specific IP address, use the permit ip host [SOURCE_IP_ADDRESS] any command. To deny access from other IP addresses, use the deny ip any any command. At the end of the ACL, it’s a good practice to include a deny statement to drop all other traffic. After defining the ACL, apply it to the switch’s management interface (VLAN 1) in interface configuration mode. Use the ip access-group [ACL_NAME] in command to apply the ACL to the inbound traffic on VLAN 1. You may also configure an outbound ACL by using the out parameter. Remember that ACLs are processed sequentially. It’s important to place the more specific rules before the more general ones. Otherwise, a general rule could inadvertently bypass a more specific rule. Testing and verifying your ACL configuration is crucial to ensure it functions as intended. Use the show access-lists command to view the ACL configuration and the number of packets that have matched each rule. Implement ACLs to protect your network.

Monitoring and Troubleshooting

Monitoring and troubleshooting Cisco switches are critical for maintaining a stable and efficient network environment. This includes utilizing various commands and tools to monitor the switch’s status, diagnose issues, and resolve them promptly. This will ensure uptime. One of the primary tools for monitoring switch performance is the show command. This command provides a wealth of information about the switch’s configuration, status, and statistics. Use show interfaces to check the status of each interface. You can use it to determine if a port is up or down, the speed of the interface, and any errors. Use show vlan brief to check your VLANs. Use show spanning-tree to verify STP configuration and status. Use show ip interface brief to check the IP configuration of the interfaces. The ping command is a valuable tool for testing connectivity. Use the ping [IP_ADDRESS] command from the privileged EXEC mode to check if you can reach another device on the network. Another important aspect of monitoring is logging and syslog. The switch can generate logs to record events and errors. Configure the switch to send log messages to a syslog server for centralized logging and monitoring. If you encounter issues, start by checking the error messages. Use the show logging command to view the switch’s log messages. Examine the logs for any errors or warnings. Also, verify that your switch can communicate with other devices. Try to ping devices on the network. Check the cabling and port status. Look for physical layer issues. Understanding the commands can help solve any network issues.

Using Show Commands for Monitoring

Using show commands for monitoring is fundamental to keeping your Cisco switches running smoothly and efficiently. These commands provide a wealth of information about the switch’s configuration, status, and performance, allowing you to quickly diagnose and resolve network issues. Here are some of the most essential show commands: The show interfaces command is your go-to tool for checking the status of individual interfaces. It provides detailed information, including the interface’s status (up/down), speed, duplex settings, and any errors that might be occurring. For example, show interfaces gigabitethernet 0/1. The show ip interface brief command displays a summary of IP address configuration for each interface, including the IP address, subnet mask, and status. Use this command to quickly verify the IP addressing configuration and ensure connectivity. The show vlan brief command provides a concise overview of the VLAN configuration on the switch, including the VLAN ID, name, status, and associated ports. This is essential for verifying VLAN membership and troubleshooting VLAN-related issues. The show spanning-tree command displays the Spanning Tree Protocol (STP) status, including the root bridge, the designated ports, the port states, and the STP timers. This command is crucial for monitoring the STP configuration and ensuring that loops are prevented. The show mac address-table command displays the MAC address table, which maps MAC addresses to switch ports. This is useful for troubleshooting connectivity issues and identifying devices connected to specific ports. The show cdp neighbors command shows information about directly connected Cisco devices. The command reveals the device type, port, and IP address. The command will provide a lot of information on your Cisco devices. Regularly using these show commands is a key practice. This allows you to proactively identify and address potential issues before they impact network performance.

Troubleshooting Common Issues

Troubleshooting common issues on Cisco switches is a key skill. Issues may occur during the network operation. From connectivity problems to VLAN configuration errors, understanding how to diagnose and resolve these problems is crucial for ensuring network stability. One common issue is connectivity problems, where devices on the network cannot communicate with each other. To troubleshoot connectivity issues, first verify the physical layer. Check the cabling, ensure that the ports are enabled and that the link lights are on. Use the show interfaces command to check the status of the ports. Next, check the IP addressing configuration. Use the show ip interface brief command to verify that the IP addresses, subnet masks, and default gateways are configured correctly. Verify that the routing configuration is also correct. Use the ping command to test connectivity to other devices. Another common problem is VLAN configuration errors. If devices in the same VLAN cannot communicate with each other, or if devices in different VLANs can communicate when they shouldn’t, there might be a VLAN misconfiguration. Use the show vlan brief command to verify that the ports are assigned to the correct VLANs. Also, check the trunk configuration to ensure that the correct VLANs are allowed on the trunk links. Spanning Tree Protocol (STP) issues can also cause problems. STP is used to prevent loops. Use the show spanning-tree command to check the STP status and verify that the root bridge is configured correctly and that the ports are in the correct states. If you see ports in a blocking state, investigate the reason. Remember that logging is also vital. Check the switch’s logs using the show logging command. The logs may provide clues about the root cause of the problem. Also, verify that the interfaces are in a good condition. These will provide a better environment.

Advanced Configuration and Best Practices

Advanced configuration and best practices for Cisco switches will further enhance your network’s performance, security, and manageability. This includes understanding and implementing features such as Quality of Service (QoS), Network Time Protocol (NTP), and implementing advanced security measures. Quality of Service (QoS) allows you to prioritize network traffic based on its importance. This is crucial for applications that require low latency, such as voice over IP (VoIP) and video streaming. Configure QoS to prioritize traffic using the mls qos command. Network Time Protocol (NTP) synchronizes the switch’s clock with an external time server. This is essential for accurate logging and troubleshooting. Configure NTP by specifying the NTP server’s IP address using the ntp server [IP_ADDRESS] command. Consider implementing advanced security measures, such as port security and access control lists (ACLs). Regularly update the switch’s iOS to the latest stable version to patch security vulnerabilities and improve performance. Implement Network Management System (NMS) software to automate network monitoring and configuration tasks. By implementing these advanced configurations and best practices, you can create a more resilient network.

Implementing Quality of Service (QoS)

Implementing Quality of Service (QoS) on Cisco switches is critical for prioritizing network traffic and ensuring optimal performance for critical applications like VoIP, video streaming, and other real-time services. QoS mechanisms allow you to manage network congestion and ensure that important traffic receives preferential treatment. The initial step in configuring QoS is to enable QoS globally on the switch using the mls qos command. This enables the global QoS configuration. After QoS is enabled, you need to classify the traffic based on various criteria, such as the source IP address, destination IP address, or port number. You can use access control lists (ACLs) to classify traffic. Once you have classified the traffic, you need to mark it with a QoS marking. The markings are typically based on the Differentiated Services Code Point (DSCP) values. This indicates the priority of the traffic. Define the QoS policy map. Policy maps define the actions to be taken on traffic matching specific criteria. Within the policy map, you can specify actions such as queuing and policing. You can also specify the bandwidth and the traffic rates. Apply the policy map to the interfaces. Apply the policy map to the ingress and egress traffic on the interfaces where the traffic is entering and leaving the network. Use the service-policy input [POLICY_MAP_NAME] command for ingress traffic. Use the service-policy output [POLICY_MAP_NAME] command for egress traffic. Monitoring the QoS configuration and traffic behavior is crucial. Use the show mls qos statistics command to monitor the QoS statistics. Make sure your network meets the QoS requirements.

Network Time Protocol (NTP) Configuration

Network Time Protocol (NTP) configuration is a key task in setting up Cisco switches. It is essential for synchronizing the switch’s clock with an accurate time source, enabling the creation of reliable logs and facilitating effective troubleshooting. Configure NTP by first identifying a reliable NTP server, such as a public NTP server or an NTP server within your organization. Next, enter global configuration mode using the configure terminal command. Then, specify the IP address or hostname of the NTP server using the ntp server [SERVER_IP_ADDRESS_OR_HOSTNAME] command. For example: ntp server 192.168.1.10. You can configure the switch to synchronize from multiple NTP servers for redundancy. In this case, you can specify additional NTP servers using the ntp server [SERVER_IP_ADDRESS_OR_HOSTNAME] command for each server. Consider configuring NTP authentication. NTP authentication helps to secure the NTP communication and prevent unauthorized manipulation of the switch’s clock. Create an NTP key using the ntp authentication-key [KEY_NUMBER] md5 [KEY_STRING] command. Then, enable authentication using the ntp authenticate command. Finally, specify the key number that you want to use using the ntp trusted-key [KEY_NUMBER] command. After configuring NTP, verify that the switch is synchronizing with the NTP server. Use the show ntp status command. The command will provide information about the NTP server. Proper NTP configuration helps in creating better logs.
