How to Structure an Angular + .NET 8 Microservices Project? (MVVM, MVC, Docker, Databases...)

In today's fast-paced digital landscape, building scalable and maintainable software systems is crucial for businesses to stay competitive. Microservices architecture has emerged as a popular approach to achieve this goal. In this article, we will explore how to structure an Angular + .NET 8 microservices project, covering essential topics such as MVVM, MVC, Docker, and databases.

Microservices architecture is a design approach that structures an application as a collection of small, independent services. Each service is responsible for a specific business capability and communicates with other services using lightweight protocols and APIs. This approach offers several benefits, including:

Scalability: Microservices can be scaled independently, allowing for more efficient use of resources.
Flexibility: New services can be added or removed without affecting the entire system.
Resilience: If one service fails, it won't bring down the entire application.

For our Angular + .NET 8 microservices project, we need to choose the right frameworks to implement the frontend and backend. Here are our choices:

Angular 16: A popular JavaScript framework for building single-page applications (SPAs).
.NET 8: A modern, cross-platform framework for building web applications and services.

To set up our project structure, we'll create separate folders for the frontend and backend. We'll also create a database folder to store our SQL Server database files.

project/
frontend/
angular/
src/
app/
components/
services/
...
...
backend/
net/
src/
Controllers/
Models/
Services/
...
...
database/
sqlserver/
...
...

In our Angular frontend, we'll implement the MVVM (Model-View-ViewModel) pattern to separate the application logic from the presentation layer. We'll use the @angular/core and @angular/forms modules to create our components and services.

// frontend/angular/src/app/components/user.component.ts
import { Component, OnInit } from '@angular/core';
import { User } from '../models/user.model';

@Component({
  selector: 'app-user',
  template: `
    <h1>{{ user.name }}</h1>
    <p>{{ user.email }}</p>
  `,
})
export class UserComponent implements OnInit {
  user: User;

  constructor(private userService: UserService) {}

  ngOnInit(): void {
    this.userService.getUser().subscribe((user) => {
      this.user = user;
    });
  }
}

In our .NET 8 backend, we'll implement the MVC (Model-View-Controller) pattern to handle HTTP requests and responses. We'll use the Microsoft.AspNetCore.Mvc and Microsoft.EntityFrameworkCore packages to create our controllers and services.

// backend/net/src/Controllers/UserController.cs
using Microsoft.AspNetCore.Mvc;
using Microsoft.EntityFrameworkCore;

namespace backend.net.Controllers
{
  [ApiController]
  [Route("api/[controller]")]
  public class UserController : ControllerBase
  {
    private readonly DbContext _context;

    public UserController(DbContext context)
    {
      _context = context;
    }

    [HttpGet]
    public async Task<ActionResult<User>> GetUser()
    {
      return await _context.Users.FirstOrDefaultAsync();
    }
  }
}

To containerize our application, we'll use Docker to create images for our frontend and backend services. We'll also create a Docker Compose file to orchestrate the containers.

# frontend/Dockerfile
FROM node:16

WORKDIR /app

COPY package*.json ./

RUN npm install

COPY . .

RUN npm run build

EXPOSE 4200

CMD ["ng", "serve", "--host", "0.0.0.0"]

# backend/Dockerfile
FROM mcr.microsoft.com/dotnet/core/sdk:8.0

WORKDIR /app

COPY *.csproj ./

RUN dotnet restore

COPY . .

RUN dotnet build -c Release

EXPOSE 5000

CMD ["dotnet", "run"]

# docker-compose.yml
version: '3'

services:
  frontend:
    build: ./frontend
    ports:
      - "4200:4200"
    depends_on:
      - backend

  backend:
    build: ./backend
    ports:
      - "5000:5000"

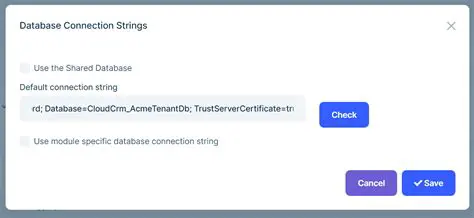

To connect to our SQL Server database, we'll use the Microsoft.EntityFrameworkCore package to create a DbContext class. We'll also create a database connection string to store the database credentials.

// backend/net/src/DbContext.cs
using Microsoft.EntityFrameworkCore;

namespace backend.net
{
  public class DbContext : DbContext
  {
    public DbSet<User> Users { get; set; }

    protected override void OnConfiguring(DbContextOptionsBuilder optionsBuilder)
    {
      optionsBuilder.UseSqlServer("Server=myserver;Database=mydatabase;User Id=myuser;Password=mypassword;");
    }
  }
}

In this article, we've explored how to structure an Angular + .NET 8 microservices project. We've covered essential topics such as MVVM, MVC, Docker, and databases. By following this guide, you'll be able to create a scalable and maintainable software system using microservices architecture.

Here are some best practices to keep in mind when building your Angular + .NET 8 microservices project:

Separate concerns: Keep the frontend and backend logic separate to improve maintainability and scalability.
Use containerization: Use Docker to containerize your application and improve deployment efficiency.
Implement security: Implement security measures such as authentication and authorization to protect your application.
Monitor performance: Monitor your application's performance to identify bottlenecks and improve scalability.

Q: What is microservices architecture, and why is it important?

A: Microservices architecture is a design approach that structures an application as a collection of small, independent services. Each service is responsible for a specific business capability and communicates with other services using lightweight protocols and APIs. This approach offers several benefits, including scalability, flexibility, and resilience.

Q: What are the key benefits of using microservices architecture?

A: The key benefits of using microservices architecture include:

Scalability: Microservices can be scaled independently, allowing for more efficient use of resources.
Flexibility: New services can be added or removed without affecting the entire system.
Resilience: If one service fails, it won't bring down the entire application.

Q: How do I choose the right frameworks for my Angular + .NET 8 microservices project?

A: To choose the right frameworks for your Angular + .NET 8 microservices project, consider the following:

Angular 16: A popular JavaScript framework for building single-page applications (SPAs).
.NET 8: A modern, cross-platform framework for building web applications and services.

Q: What is the difference between MVVM and MVC patterns?

A: The MVVM (Model-View-ViewModel) pattern separates the application logic from the presentation layer, while the MVC (Model-View-Controller) pattern separates the application logic from the presentation layer and the business logic.

Q: How do I implement MVVM and MVC patterns in my Angular + .NET 8 microservices project?

A: To implement MVVM and MVC patterns in your Angular + .NET 8 microservices project, follow these steps:

Angular: Use the @angular/core and @angular/forms modules to create your components and services.
.NET 8: Use the Microsoft.AspNetCore.Mvc and Microsoft.EntityFrameworkCore packages to create your controllers and services.

Q: What is Docker, and how do I use it for containerization?

A: Docker is a containerization platform that allows you to package your application and its dependencies into a single container. To use Docker for containerization, follow these steps:

Create a Dockerfile: Create a Dockerfile to define the build process for your container.
Build the container: Build the container using the Dockerfile.
Run the container: Run the container using the docker run command.

Q: How do I connect to the database in my Angular + .NET 8 microservices project?

A: To connect to the database in your Angular + .NET 8 microservices project, follow these steps:

Create a DbContext class: Create a DbContext class to define the database schema.
Create a database connection string: Create a database connection string to store the database credentials.
Use the DbContext class: Use the DbContext class to connect to the database.

Q: What are some best practices for building an Angular + .NET 8 microservices project?

A: Some best practices for building an Angular + .NET 8 microservices project include:

Separate concerns: Keep the frontend and backend logic separate to improve maintainability and scalability.
Use containerization: Use Docker to containerize your application and improve deployment efficiency.
Implement security: Implement security measures such as authentication and authorization to protect your application.
Monitor performance: Monitor your application's performance to identify bottlenecks and improve scalability.

In this Q&A article, we've covered essential topics related to building an Angular + .NET 8 microservices project. We've discussed microservices architecture, frameworks, patterns, Docker, and database connection. By following these best practices and guidelines, you'll be able to create a robust and scalable software system using microservices architecture.
