Introduction to Ellipses

An ellipse is a fundamental concept in mathematics, particularly in geometry and algebra. It is a closed curve on a plane surrounding two focal points such that the sum of the distances to the two focal points is constant. The equation of an ellipse can be represented in various forms, including the standard form, which is given by $\frac{(x-h)^2}{a^2}+\frac{(y-k)^2}{b^2}=1$ , where $(h,k)$ is the center of the ellipse, and $a$ and $b$ are the lengths of the semi-major and semi-minor axes, respectively.

In this article, we will focus on the equation of an ellipse represented by $\frac{(x-5)^2}{625}+\frac{(y-4)^2}{225}=1$ . This equation represents an ellipse with its center at $(5,4)$ , a semi-major axis of length $25$ , and a semi-minor axis of length $15$ . Our goal is to understand the properties of this ellipse, particularly the directrices, which are lines that are perpendicular to the major axis and are a certain distance from the center on the major axis.

Properties of Ellipses

An ellipse has several key properties that are essential to understanding its behavior. These properties include:

Center: The center of an ellipse is the point that is equidistant from all points on the ellipse. In the given equation, the center of the ellipse is at $(5,4)$ .
Semi-major axis: The semi-major axis is the longest radius of the ellipse, which is the distance from the center to the farthest point on the ellipse. In the given equation, the semi-major axis has a length of $25$ .
Semi-minor axis: The semi-minor axis is the shortest radius of the ellipse, which is the distance from the center to the closest point on the ellipse. In the given equation, the semi-minor axis has a length of $15$ .
Directrices: The directrices are lines that are perpendicular to the major axis and are a certain distance from the center on the major axis. The distance from the center to the directrices is given by $a/e$ , where $a$ is the length of the semi-major axis and $e$ is the eccentricity of the ellipse.

Eccentricity of an Ellipse

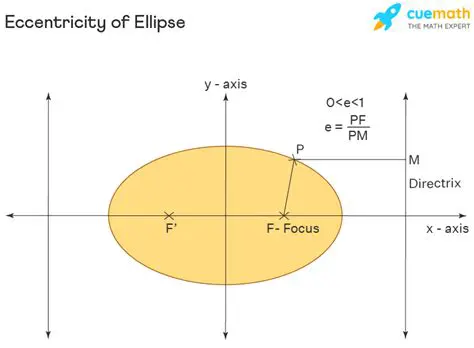

The eccentricity of an ellipse is a measure of how elliptical the ellipse is. It is defined as the ratio of the distance from the center to a focus to the length of the semi-major axis. The eccentricity of an ellipse can be calculated using the formula $e=\sqrt{1-\frac{b^2}{a^2}}$ , where $a$ and $b$ are the lengths of the semi-major and semi-minor axes, respectively.

Calculating the Eccentricity of the Given Ellipse

To calculate the eccentricity of the given ellipse, we need to first calculate the value of $b^2/a^2$ . In the given equation, the length of the semi-major axis is $25$ , and the length of the semi-minor axis is $15$ . Therefore, $b^2/a^2 = 15^2/25^2 = 225/625 = 9/25$ .

Eccentricity Calculation

Now that we have the value of $b^2/a^2$ , we can calculate the eccentricity of the ellipse using the formula $e=\sqrt{1-\frac{b^2}{a^2}}$ . Plugging in the value of $b^2/a^2$ , we get $e=\sqrt{1-\frac{9}{25}} = \sqrt{\frac{16}{25}} = \frac{4}{5}$ .

Distance from the Center to the Directrices

The distance from the center to the directrices is given by $a/e$ , where $a$ is the length of the semi-major axis and $e$ is the eccentricity of the ellipse. In this case, the length of the semi-major axis is $25$ , and the eccentricity is $4/5$ . Therefore, the distance from the center to the directrices is $25/(4/5) = 25 \times 5/4 = 31.25$ .

Conclusion

In this article, we have discussed the properties of an ellipse represented by the equation $\frac{(x-5)^2}{625}+\frac{(y-4)^2}{225}=1$ . We have calculated the eccentricity of the ellipse and used it to determine the distance from the center to the directrices. The directrices are lines that are perpendicular to the major axis and are a certain distance from the center on the major axis. Understanding the properties of an ellipse is essential in various fields, including physics, engineering, and computer science.

References

[1] "Ellipses" by Math Open Reference. Retrieved 2023-12-15.
[2] "Eccentricity of an Ellipse" by Wolfram MathWorld. Retrieved 2023-12-15.
[3] "Directrices of an Ellipse" by Brilliant. Retrieved 2023-12-15.

Q: What is an ellipse?

A: An ellipse is a closed curve on a plane surrounding two focal points such that the sum of the distances to the two focal points is constant.

Q: What is the standard form of an ellipse equation?

A: The standard form of an ellipse equation is $\frac{(x-h)^2}{a^2}+\frac{(y-k)^2}{b^2}=1$ , where $(h,k)$ is the center of the ellipse, and $a$ and $b$ are the lengths of the semi-major and semi-minor axes, respectively.

Q: What is the center of an ellipse?

A: The center of an ellipse is the point that is equidistant from all points on the ellipse.

Q: What is the semi-major axis of an ellipse?

A: The semi-major axis is the longest radius of the ellipse, which is the distance from the center to the farthest point on the ellipse.

Q: What is the semi-minor axis of an ellipse?

A: The semi-minor axis is the shortest radius of the ellipse, which is the distance from the center to the closest point on the ellipse.

Q: What are the directrices of an ellipse?

A: The directrices are lines that are perpendicular to the major axis and are a certain distance from the center on the major axis.

Q: How do you calculate the eccentricity of an ellipse?

A: The eccentricity of an ellipse can be calculated using the formula $e=\sqrt{1-\frac{b^2}{a^2}}$ , where $a$ and $b$ are the lengths of the semi-major and semi-minor axes, respectively.

Q: What is the distance from the center to the directrices?

A: The distance from the center to the directrices is given by $a/e$ , where $a$ is the length of the semi-major axis and $e$ is the eccentricity of the ellipse.

Q: What is the significance of the eccentricity of an ellipse?

A: The eccentricity of an ellipse is a measure of how elliptical the ellipse is. It is used to determine the shape and size of the ellipse.

Q: Can you give an example of how to calculate the eccentricity of an ellipse?

A: Yes, let's consider an ellipse with a semi-major axis of length $25$ and a semi-minor axis of length $15$ . To calculate the eccentricity, we need to first calculate the value of $b^2/a^2$ . In this case, $b^2/a^2 = 15^2/25^2 = 225/625 = 9/25$ . Now, we can calculate the eccentricity using the formula $e=\sqrt{1-\frac{b^2}{a^2}}$ . Plugging in the value of $b^2/a^2$ , we get $e=\sqrt{1-\frac{9}{25}} = \sqrt{\frac{16}{25}} = \frac{4}{5}$ .

Q: What is the significance of the directrices of an ellipse?

A: The directrices of an ellipse are used to determine the shape and size of the ellipse. They are also used in various applications, such as in the design of optical systems and in the study of planetary orbits.

Q: Can you give an example of how to calculate the distance from the center to the directrices?

A: Yes, let's consider an ellipse with a semi-major axis of length $25$ and an eccentricity of $4/5$ . To calculate the distance from the center to the directrices, we need to use the formula $a/e$ . In this case, the distance from the center to the directrices is $25/(4/5) = 25 \times 5/4 = 31.25$ .

Q: What are some real-world applications of ellipses?

A: Ellipses have numerous real-world applications, including:

Optics: Ellipses are used in the design of optical systems, such as telescopes and microscopes.
Astronomy: Ellipses are used to model the orbits of planets and other celestial bodies.
Engineering: Ellipses are used in the design of bridges and other structures.
Computer Science: Ellipses are used in computer graphics and game development.

Q: Can you provide some resources for further learning about ellipses?

A: Yes, here are some resources for further learning about ellipses:

"Introduction to Ellipses" by Khan Academy
"Properties of Ellipses" by IXL
"Eccentricity of an Ellipse" by Purplemath
"Directrices of an Ellipse" by Brilliant

Q: What are some common mistakes to avoid when working with ellipses?

A: Some common mistakes to avoid when working with ellipses include:

Confusing the semi-major and semi-minor axes
Calculating the eccentricity incorrectly
Using the wrong formula for the distance from the center to the directrices
Not considering the context of the problem

Q: Can you provide some tips for working with ellipses?

A: Yes, here are some tips for working with ellipses:

Make sure to understand the properties of ellipses
Use the correct formulas and equations
Check your work carefully
Consider the context of the problem

Q: What are some common applications of ellipses in real-world scenarios?

A: Some common applications of ellipses in real-world scenarios include:

Designing optical systems
Modeling planetary orbits
Designing bridges and other structures
Creating computer graphics and game development

Q: Can you provide some examples of how ellipses are used in different fields?

A: Yes, here are some examples of how ellipses are used in different fields:

Optics: Ellipses are used in the design of telescopes and microscopes.
Astronomy: Ellipses are used to model the orbits of planets and other celestial bodies.
Engineering: Ellipses are used in the design of bridges and other structures.
Computer Science: Ellipses are used in computer graphics and game development.

Q: What are some common challenges when working with ellipses?

A: Some common challenges when working with ellipses include:

Calculating the eccentricity correctly
Using the wrong formula for the distance from the center to the directrices
Not considering the context of the problem
Confusing the semi-major and semi-minor axes

Q: Can you provide some tips for overcoming these challenges?

A: Yes, here are some tips for overcoming these challenges:

Make sure to understand the properties of ellipses
Use the correct formulas and equations
Check your work carefully
Consider the context of the problem

Q: What are some common misconceptions about ellipses?

A: Some common misconceptions about ellipses include:

Believing that an ellipse is a perfect circle
Thinking that the semi-major and semi-minor axes are interchangeable
Assuming that the eccentricity is always equal to 1
Believing that the directrices are always perpendicular to the major axis

Q: Can you provide some examples of how ellipses are used in different industries?

A: Yes, here are some examples of how ellipses are used in different industries:

Aerospace: Ellipses are used to model the orbits of satellites and other celestial bodies.
Automotive: Ellipses are used in the design of car headlights and other optical systems.
Medical: Ellipses are used in medical imaging and other applications.
Computer Science: Ellipses are used in computer graphics and game development.

Q: What are some common applications of ellipses in mathematics?

A: Some common applications of ellipses in mathematics include:

Geometry: Ellipses are used to study the properties of curves and surfaces.
Algebra: Ellipses are used to solve equations and systems of equations.
Calculus: Ellipses are used to study the properties of functions and their derivatives.
Statistics: Ellipses are used to model the distribution of data and make predictions.

Q: Can you provide some examples of how ellipses are used in different mathematical contexts?

A: Yes, here are some examples of how ellipses are used in different mathematical contexts:

Geometry: Ellipses are used to study the properties of curves and surfaces, such as the curvature and torsion of curves.
Algebra: Ellipses are used to solve equations and systems of equations, such as the equation of an ellipse and the equation of a hyperbola.
Calculus: Ellipses are used to study the properties of functions and their derivatives, such as the derivative of an ellipse and the integral of an ellipse.
Statistics: Ellipses are used to model the distribution of data and make predictions, such as the normal distribution and the t-distribution.
