The EFI Revolution: A Deep Dive into Electronic Fuel Injection Technology

EFI, or Electronic Fuel Injection, stands as one of the most significant advancements in automotive engineering, fundamentally reshaping how vehicle engines operate. This groundbreaking technology has replaced traditional carburetors, offering unparalleled precision in fuel delivery and air-fuel mixture control. The shift to EFI has not only led to dramatic improvements in engine performance and fuel efficiency but also played a critical role in reducing harmful emissions, making modern vehicles cleaner and more powerful than ever before. Understanding EFI is key to comprehending the sophistication of contemporary automotive systems and appreciating the intricate dance between mechanics and electronics that drives our cars today. From its nascent stages to the advanced systems powering today’s high-performance vehicles, EFI represents a continuous journey of innovation aimed at optimizing every aspect of internal combustion.

The Evolution of EFI: From Carburetors to Cutting-Edge Precision

The journey of EFI from its conceptual beginnings to the sophisticated systems we see today is a testament to the relentless pursuit of automotive excellence. Before the widespread adoption of EFI, carburetors were the standard for mixing air and fuel in an internal combustion engine. While functional, carburetors suffered from inherent limitations: they struggled with varying altitudes, temperature changes, and often delivered an imprecise fuel-air ratio, leading to inefficient combustion, higher emissions, and inconsistent performance. The crude mechanical nature of carburetors simply couldn’t adapt quickly enough to dynamic driving conditions or stringent emission standards. This inherent inflexibility paved the way for the development of Electronic Fuel Injection.

Early attempts at fuel injection in the 1950s and 60s, such as mechanical fuel injection systems used in racing and some high-end luxury cars, offered better control than carburetors but were still complex and expensive to produce for mass markets. The real breakthrough came with the advent of affordable microprocessors in the 1970s and 80s, which made electronic fuel injection a viable and practical solution. These early EFI systems, often utilizing throttle body injection (TBI), were relatively simple, featuring one or two injectors mounted at the throttle body, much like a carburetor. While a significant improvement, they still distributed fuel somewhat broadly, not directly into each cylinder port.

As technology advanced, so did EFI. The transition from TBI to Multi-Port Fuel Injection (MPFI) marked a critical step forward. MPFI systems place an injector at each intake port, allowing for a more precise and individualized fuel delivery to each cylinder. This level of control meant engines could run leaner for better fuel economy, richer for more power when needed, and consistently deliver optimal performance across a wider range of operating conditions. Further refinement led to Sequential Multi-Port Fuel Injection (SMPFI), where fuel injectors are timed to open just before the intake valve of each cylinder opens, delivering fuel with even greater accuracy and efficiency. This sequential timing ensures that fuel is only sprayed when needed, minimizing fuel waste and maximizing combustion efficiency.

Today, the pinnacle of EFI technology is often seen in Gasoline Direct Injection (GDI) systems. GDI takes precision to an entirely new level by injecting fuel directly into the combustion chamber itself, rather than into the intake port. This direct injection allows for incredibly high fuel pressures and extremely fine fuel atomization, enabling engines to operate with higher compression ratios and leaner air-fuel mixtures. The benefits are substantial: significantly improved fuel economy, increased power output, and even lower emissions. The evolution of EFI from rudimentary mechanical systems to the advanced GDI setups showcases a remarkable journey of innovation, continuously pushing the boundaries of what’s possible in engine management and demonstrating a clear path towards more efficient, powerful, and environmentally friendly vehicles. This continuous advancement underscores the dynamic nature of EFI and its indispensable role in the modern automotive landscape, perpetually adapting to new demands and technological opportunities.

How EFI Works: Unpacking the Core Components

At its heart, an EFI system is an intricate network designed to deliver the precise amount of fuel required for optimal combustion under all engine operating conditions. Unlike the mechanical simplicity of a carburetor, EFI relies on a sophisticated electronic control unit (ECU) to manage a complex array of sensors and actuators. Understanding how these core components interact is crucial to grasping the power and precision of Electronic Fuel Injection. The process begins with the ECU, often referred to as the ‘brain’ of the engine management system, receiving a continuous stream of data from various sensors strategically placed throughout the engine and vehicle.

Key among these sensors is the Mass Air Flow (MAF) sensor or Manifold Absolute Pressure (MAP) sensor, which measures the volume or density of air entering the engine. This is a fundamental piece of information, as the amount of fuel needed is directly proportional to the amount of air consumed. Other critical sensors include the Oxygen (O2) sensor, located in the exhaust stream, which monitors the oxygen content in the exhaust gases, providing real-time feedback on the efficiency of combustion and allowing the ECU to fine-tune the air-fuel mixture to ideal stoichiometric levels. The Throttle Position Sensor (TPS) tells the ECU how much the accelerator pedal is being pressed, indicating driver demand for power. The Coolant Temperature Sensor (CTS) informs the ECU about the engine’s operating temperature, which is vital for adjusting fuel delivery during cold starts (requiring a richer mixture) and maintaining efficiency once warm. Finally, the Crankshaft Position Sensor (CKP) and Camshaft Position Sensor (CMP) provide precise information about engine speed and piston position, essential for accurate ignition timing and sequential fuel injection.

Once the ECU processes all this incoming data, it calculates the exact amount of fuel to be injected and the precise moment of injection. This calculation is performed thousands of times per second, ensuring dynamic adaptation to changing conditions. The ECU then sends signals to the actuators, which carry out its commands. The primary actuators in an EFI system are the fuel injectors. These are precisely engineered solenoid-operated valves that spray a fine mist of fuel into the engine. Each injector opens and closes rapidly, controlled by the ECU, to deliver the calculated fuel volume. The fuel itself is supplied under high pressure from the fuel tank by an electric fuel pump, which ensures a consistent and ample supply to the injectors. A fuel pressure regulator maintains the correct pressure in the fuel rail, preventing fluctuations that could compromise injection accuracy. Additional actuators may include the idle air control (IAC) valve, which regulates engine idle speed, and components related to emissions control.

In essence, the entire EFI system forms a closed-loop feedback mechanism. Sensors provide input, the ECU computes and commands, and actuators perform the actions. The O2 sensor then provides feedback on the result, allowing the ECU to make further real-time adjustments. This constant monitoring and adjustment process is what gives EFI its remarkable ability to optimize engine performance, maximize fuel economy, and minimize emissions under virtually any driving condition, a level of sophistication utterly unattainable by its carburetor predecessors. The synergistic operation of these components ensures that the engine always receives the optimal air-fuel mixture, making EFI an indispensable technology in modern vehicle design and operation.

Key Benefits of EFI: Why It Matters for Modern Vehicles

The widespread adoption of EFI across virtually all modern vehicles is not merely a trend; it’s a testament to the profound and multifaceted benefits this technology delivers. From enhancing performance to drastically improving environmental responsibility, Electronic Fuel Injection has revolutionized the driving experience and the automotive industry as a whole. Understanding these key advantages clarifies why EFI has become an indispensable component of contemporary engine design. The most immediate and noticeable benefit for drivers is often the significant improvement in fuel economy.

EFI systems precisely meter fuel based on a myriad of engine parameters, ensuring that only the exact amount of fuel needed for complete combustion is delivered. This eliminates the waste common in carburetors, which often run rich (too much fuel) under various conditions. The result is more miles per gallon, saving drivers money and reducing the frequency of fill-ups. Beyond economy, EFI also delivers superior engine performance. By providing optimal fuel-air mixtures at all times, EFI allows engines to generate more power and torque across the entire RPM range. This leads to quicker acceleration, smoother power delivery, and better throttle response, making for a more engaging and confident driving experience. Whether you’re cruising on the highway or navigating city streets, the engine responds predictably and efficiently.

Another critical advantage, particularly in an era of increasing environmental awareness, is the dramatic reduction in harmful emissions. The precise control over the air-fuel ratio, especially in conjunction with oxygen sensors in a closed-loop system, allows catalytic converters to operate at peak efficiency. By maintaining an ideal stoichiometric mixture, EFI significantly minimizes the output of unburnt hydrocarbons, carbon monoxide, and nitrogen oxides, which are major air pollutants. This has been instrumental in meeting stringent emission standards worldwide and contributing to cleaner air quality. For instance, the ability of EFI to adapt to varying atmospheric conditions, such as changes in altitude or temperature, means that the engine consistently runs clean, unlike carburetors which often struggle to maintain efficiency in diverse environments.

Furthermore, EFI offers enhanced reliability and driveability. Cold starts, once a notorious challenge with carbureted engines, are now virtually seamless thanks to EFI. The ECU automatically enriches the fuel mixture for cold engines, ensuring quick and smooth starts, regardless of ambient temperature. Idle stability is also greatly improved, as the ECU continuously adjusts fuel delivery and air intake to maintain a consistent idle speed. Drivers experience fewer stalls and a generally smoother operation, contributing to a more pleasant and dependable driving experience. The self-diagnostic capabilities integrated into most EFI systems, through the On-Board Diagnostics (OBD) port, further enhance reliability by quickly identifying and alerting drivers to potential issues, allowing for timely maintenance and repairs. This combination of efficiency, performance, environmental responsibility, and reliability firmly establishes EFI as a cornerstone of modern automotive engineering, making vehicles not just faster and more economical, but also significantly more environmentally friendly and user-friendly.

Types of EFI Systems: A Closer Look at Fuel Delivery Methods

The term EFI encompasses a range of sophisticated systems, each designed to optimize fuel delivery in different ways, leading to varying levels of precision, performance, and cost. While all Electronic Fuel Injection systems share the common goal of precisely metering fuel, their architectural differences have significant implications for engine operation. Delving into the main types helps clarify the evolutionary path and the specialized applications of this vital technology. Starting with the foundational approaches, we can trace the progression of fuel delivery methods within EFI systems.

One of the earliest and simplest forms of EFI was Throttle Body Injection (TBI). In a TBI system, one or two fuel injectors are positioned in a central throttle body, typically above the throttle plate. This design closely resembles a carburetor in its placement and the way it introduces fuel into the incoming air stream. The fuel is sprayed into the manifold, where it mixes with air before being drawn into the individual cylinders. While TBI was a significant improvement over carburetors in terms of fuel metering precision and cold starting, it still suffered from some of the same limitations regarding uneven fuel distribution among cylinders, especially in V-type engines with longer intake runners. The ‘wet manifold’ effect, where fuel can condense on the manifold walls, was also a challenge, reducing overall efficiency compared to more advanced systems.

The next major leap came with Multi-Port Fuel Injection (MPFI). This system, also sometimes called Port Fuel Injection (PFI), revolutionizes fuel delivery by placing a separate fuel injector at each intake port, just upstream of the intake valve for each cylinder. This design ensures that fuel is delivered directly into the air stream entering each cylinder, allowing for much more precise and uniform fuel distribution. MPFI significantly reduces the ‘wet manifold’ issue and allows for individual cylinder tuning, leading to better fuel economy, increased power output, and lower emissions compared to TBI. Most engines from the late 1980s through the early 2000s utilized some form of MPFI, proving its effectiveness and reliability as a mainstream EFI technology.

A refinement of MPFI is Sequential Multi-Port Fuel Injection (SMPFI). While still using an injector at each intake port, SMPFI takes precision a step further. In a sequential system, the ECU times the opening of each injector to coincide precisely with the opening of that cylinder’s intake valve. This means fuel is delivered to each cylinder individually, only when it is needed for the combustion cycle, optimizing the atomization and mixing process. The benefits of SMPFI over non-sequential MPFI include even greater fuel efficiency, reduced emissions (as less fuel is sitting in the intake port waiting to be drawn in), and often slightly improved throttle response due to the finer control over fuel delivery. This level of synchronization with the engine’s cycle represents a high degree of sophistication in EFI management.

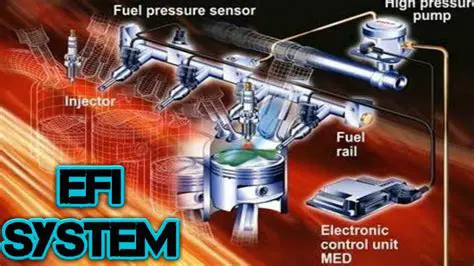

Finally, the most advanced form of EFI widely available today is Gasoline Direct Injection (GDI). In GDI systems, the fuel injectors are mounted directly into the cylinder head, spraying fuel under extremely high pressure directly into the combustion chamber, rather than into the intake port. This direct injection allows for incredibly fine fuel atomization and enables engine designers to implement innovative combustion strategies, such as lean-burn operation and stratified charge injection (where a richer mixture is localized around the spark plug). GDI engines typically achieve significantly higher fuel economy, greater power output, and lower emissions compared to their port-injected counterparts. However, GDI systems can be more complex and costly, and they introduce unique challenges like carbon buildup on intake valves (since fuel no longer washes over them). Despite these complexities, GDI represents the current cutting edge of EFI technology, continuing to push the boundaries of engine efficiency and performance, and solidifying the essential role of Electronic Fuel Injection in modern automotive propulsion systems.

Maintaining and Diagnosing EFI Systems

The reliability and performance of modern vehicles are heavily reliant on the optimal functioning of their EFI systems. While Electronic Fuel Injection is remarkably robust, like any complex automotive component, it requires proper maintenance and occasional diagnosis to ensure its longevity and peak efficiency. Understanding common issues and effective maintenance practices for EFI systems can save drivers significant time and money, preventing minor problems from escalating into major repairs. Regular attention to the components of your EFI system is paramount for sustained performance.

One of the most frequent culprits behind EFI related issues is clogged fuel injectors. Over time, deposits from fuel can build up on the injector nozzles, disrupting the spray pattern and reducing the amount of fuel delivered. Symptoms often include rough idling, misfires, reduced fuel economy, and a decrease in engine power. Regular use of high-quality fuel containing detergents can help prevent this buildup. For existing clogs, a professional fuel system cleaning, often involving specialized solvents and equipment, can restore injector performance. Another critical component requiring attention is the fuel filter. This filter prevents contaminants from reaching the delicate injectors and the fuel pump. A clogged fuel filter restricts fuel flow, leading to symptoms similar to clogged injectors, or even causing the engine to starve for fuel under heavy loads. Replacing the fuel filter at recommended intervals is a simple yet crucial maintenance task.

Sensor failures are also common causes of EFI system malfunctions. As discussed, numerous sensors feed data to the ECU. If a sensor—such as the O2 sensor, MAF sensor, or TPS—provides inaccurate readings or fails entirely, the ECU will receive incorrect information, leading to improper fuel delivery. This can manifest as poor fuel economy, erratic idling, increased emissions, or the ‘Check Engine’ light illuminating on the dashboard. Diagnosing sensor issues typically requires a diagnostic scan tool (OBD-II scanner) to read fault codes stored in the ECU. These codes can pinpoint the faulty sensor, allowing for targeted replacement and avoiding costly guesswork. It’s important to use quality replacement sensors, as inexpensive alternatives might not provide accurate readings.

Beyond specific components, the electrical connections and wiring within the EFI system are vulnerable to corrosion, wear, and damage. Loose or corroded connectors can disrupt signals between sensors, the ECU, and actuators, leading to intermittent problems or complete system failure. Periodically inspecting visible wiring harnesses and connectors for signs of damage or corrosion can preempt many issues. Furthermore, maintaining a healthy battery and charging system is vital, as EFI systems are highly reliant on stable electrical power for their precise operations. Fluctuations or insufficient voltage can cause the ECU to malfunction or provide incorrect readings.

Finally, modern EFI systems are designed with extensive self-diagnostic capabilities. The ‘Check Engine’ light is your first indicator that the ECU has detected a fault. When this light illuminates, it’s advisable to have the vehicle scanned with an OBD-II tool as soon as possible. The resulting diagnostic trouble codes (DTCs) provide valuable clues, guiding technicians to the specific area of concern. While some issues might be simple (like a loose gas cap), others can indicate serious problems that, if left unaddressed, could lead to further damage to the engine or catalytic converter. Regular maintenance, attentive driving, and prompt professional diagnosis are key to ensuring your Electronic Fuel Injection system continues to operate efficiently, providing optimal performance and reliability for your vehicle for years to come.

The Future of EFI: Innovation on the Horizon

As the automotive industry rapidly evolves towards greater efficiency, sustainability, and connectivity, the future of EFI is poised for continuous innovation. While Electronic Fuel Injection has already achieved remarkable levels of precision and control, ongoing research and development aim to integrate it even more deeply with emerging technologies, pushing the boundaries of what internal combustion engines can achieve. The drive for stricter emissions standards and the growing demand for hybrid and electric vehicles are key forces shaping the next generation of EFI systems. We are moving beyond simply optimizing fuel delivery to creating fully integrated, intelligent powertrain management.

One significant area of future development lies in further refining direct injection technologies. While GDI is highly effective, engineers are exploring ways to mitigate its inherent challenges, such as particulate emissions and carbon buildup on intake valves. Dual-injection systems, combining both port injection and direct injection, are becoming more common. These systems leverage the benefits of port injection (washing intake valves, better cold start emissions) with the advantages of direct injection (higher compression, better power and fuel economy) depending on the engine’s operating conditions. This hybrid approach to EFI aims to deliver the best of both worlds, achieving even greater all-around efficiency and cleanliness.

Another crucial aspect of EFI’s future is its deeper integration with hybrid and electric powertrains. In hybrid vehicles, the internal combustion engine (ICE) often operates intermittently, shutting down and restarting frequently. EFI systems in these applications must be capable of seamless, rapid restarts and precise fuel delivery even after periods of inactivity, ensuring optimal performance and minimal emissions upon reactivation. This demands highly responsive fuel pumps, injectors, and sophisticated ECU algorithms that can manage the transitions between electric and gasoline power smoothly and efficiently. The interaction between the EFI system and the electric motor’s control unit will become increasingly complex, requiring advanced communication protocols and predictive algorithms.

Advanced sensor technology and artificial intelligence (AI) will also play an increasingly vital role in future EFI systems. Expect to see more sophisticated sensors that can provide even more granular data about combustion conditions, exhaust gas composition, and engine wear. AI and machine learning algorithms can process this wealth of data in real-time, allowing the ECU to make even more precise, predictive adjustments to fuel injection and ignition timing. This could lead to self-optimizing engines that continuously learn and adapt to driving styles, fuel quality, and environmental conditions, maximizing efficiency and minimizing emissions throughout the vehicle’s lifespan. For example, AI could anticipate driving demands based on navigation data and proactively adjust engine parameters for upcoming terrain or traffic.

Finally, the focus on connectivity and over-the-air updates will extend to EFI systems. Just as infotainment systems receive updates, future EFI ECUs might receive software updates that improve fuel mapping, enhance performance, or address emission compliance issues without needing a physical visit to a service center. This level of remote diagnostics and optimization will ensure that Electronic Fuel Injection systems remain at the cutting edge throughout the vehicle’s life cycle. The future of EFI is not just about fuel delivery; it’s about intelligent, adaptive, and seamlessly integrated powertrain management that continues to push the boundaries of automotive performance, efficiency, and environmental responsibility, solidifying its place as a cornerstone of sustainable mobility.

Conclusion: EFI’s Enduring Legacy

In summation, the journey of EFI, or Electronic Fuel Injection, from a revolutionary concept to an automotive standard, underscores its monumental impact on the industry. It has single-handedly transformed the internal combustion engine, elevating it from a mechanically crude power plant to a highly sophisticated, precisely controlled machine. The core benefits – dramatically improved fuel economy, enhanced engine performance, and significantly reduced emissions – are not just incremental improvements but fundamental shifts that have reshaped our expectations of what a vehicle can achieve. EFI’s precise control over the air-fuel mixture, driven by a complex interplay of sensors and actuators managed by the ECU, has made vehicles cleaner, more powerful, and far more reliable.

From the early days of Throttle Body Injection to the advanced precision of Gasoline Direct Injection, the evolution of EFI reflects a continuous commitment to innovation. It has enabled manufacturers to meet ever-tightening environmental regulations while simultaneously delivering the robust performance and smooth driveability that consumers demand. Furthermore, the proactive approach to EFI system maintenance and diagnosis, facilitated by on-board diagnostics, ensures that these sophisticated systems remain in optimal working order, extending the life and efficiency of our vehicles.

Looking ahead, the future of EFI is inextricably linked with the broader trends in automotive technology. Its ongoing integration with hybrid powertrains, the adoption of even more advanced sensors, and the leveraging of artificial intelligence will continue to push the boundaries of engine efficiency and environmental responsibility. EFI is not merely a component; it is a dynamic and evolving technology that will continue to be a cornerstone of powertrain management, adapting to new challenges and opportunities in the quest for sustainable and high-performance mobility. Its legacy is etched into every modern vehicle, a testament to the power of electronic precision in an increasingly complex world.
