Analysis of the Effect of Unbalanced Voltage on Temperature of Three Phase Induction Motors (Applications in the USU FT Electric Energy Conversion Laboratory)

Introduction

The three-phase induction motor is a crucial component in various industrial and household applications. However, an unbalanced voltage supply can significantly impact the performance and lifespan of this motor. The USU FT Electric Energy Conversion Laboratory has conducted research to investigate the effect of unbalanced voltage on the temperature of three-phase induction motors. This study aims to provide insights into the impact of voltage imbalance on motor temperature and highlight the importance of maintaining a balanced voltage supply.

Background

Three-phase induction motors are widely used in various industries due to their reliability, efficiency, and cost-effectiveness. However, an unbalanced voltage supply can lead to a range of problems, including increased wear on motor components, reduced motor efficiency, and decreased lifespan. The USU FT Electric Energy Conversion Laboratory has conducted extensive research on the effects of unbalanced voltage on three-phase induction motors, with a focus on understanding the impact on motor temperature.

Methodology

This study employed two measurement methods to compare the temperature of three-phase induction motors under balanced and unbalanced voltage conditions. The first method involved using an infrared thermometer to measure the temperature of the motor, while the second method involved measuring the induced motor resistance. The results of these measurements were then analyzed to determine the impact of voltage imbalance on motor temperature.

Results

The results of this study show that the induction motor supplied with an unbalanced voltage experiences a higher increase in temperature compared to the balanced voltage conditions. The measurement using an infrared thermometer shows a temperature increase of 0.1233 ⁰C/minute for a balanced voltage, 0.47 ⁰C/minute for an imbalance of 1%, and 0.703 ⁰C/minute for an imbalance of 3%. Meanwhile, the measurement of resistance shows a temperature increase of 0.19967 ⁰C/minute for a balanced voltage, 0.567 ⁰C/minute for an imbalance of 1%, and 0.837 ⁰C/minute for an imbalance of 3%.

Further Analysis

The results of this study indicate that the higher the level of voltage imbalance, the higher the increase in temperature in the induction motor. This is caused by the current flowing in the motor phase being unbalanced, resulting in higher heat. A significant increase in temperatures in induction motors can cause various problems, including:

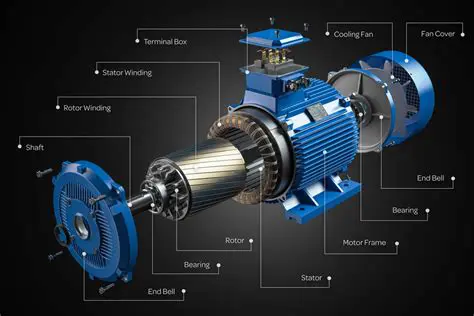

Increased wear on the motor component: High temperatures can accelerate the wear process of motor components, such as bearings, coils, and rotors.
Motor use age approach: Increase in temperature impact on the age of the motor, so that the motor is damaged faster.
Decreased Motor Efficiency: Increase in temperature causes a decrease in motor efficiency because some of the energy that should be used to produce power, is wasted as heat.

The Importance of Balanced Voltage Supply

This study emphasizes the importance of maintaining a balanced voltage supply for three-phase induction motors. So that the induction motor works optimally and the period of use is longer, it is necessary to take precautions such as:

Installing the stabilizer of the voltage: The stabilizer of the voltage can help maintain the stability of the voltage that enters the induction motor, thereby preventing the voltage imbalance.
Perform regular maintenance: Periodic maintenance can detect the problem of voltage imbalances early and prevent damage to the induction motor.
Ensuring that the supply cable is in good condition: Damaged or peeled supply cable can cause voltage imbalances.

Conclusion

Research in the USU FT Electric Energy Conversion Laboratory shows that stress imbalances on three-phase induction motors have a significant impact on the increase in temperature, which can lead to a decrease in performance and motor life. Therefore, maintaining a balanced voltage supply becomes very important to ensure the optimal and long-lived induction motor performance.

Recommendations

Based on the findings of this study, the following recommendations are made:

Regular maintenance: Regular maintenance should be performed to detect any problems with the voltage supply and prevent damage to the induction motor.
Installation of voltage stabilizers: Voltage stabilizers should be installed to maintain the stability of the voltage that enters the induction motor.
Ensuring the supply cable is in good condition: The supply cable should be checked regularly to ensure that it is in good condition and not damaged or peeled.

Future Research Directions

Future research should focus on investigating the impact of voltage imbalance on the performance and lifespan of three-phase induction motors in various industrial and household applications. Additionally, research should be conducted to develop more effective methods for detecting and preventing voltage imbalances in induction motors.

Limitations of the Study

This study has several limitations, including:

Limited sample size: The study was conducted with a limited sample size, which may not be representative of all three-phase induction motors.
Limited measurement methods: The study employed only two measurement methods, which may not be sufficient to fully understand the impact of voltage imbalance on motor temperature.

Conclusion

In conclusion, this study has shown that unbalanced voltage supply can have a significant impact on the temperature of three-phase induction motors, leading to decreased performance and lifespan. The results of this study emphasize the importance of maintaining a balanced voltage supply and highlight the need for regular maintenance and the installation of voltage stabilizers to prevent damage to the induction motor.
Q&A: Analysis of the Effect of Unbalanced Voltage on Temperature of Three Phase Induction Motors

Introduction

In our previous article, we discussed the analysis of the effect of unbalanced voltage on the temperature of three-phase induction motors. In this article, we will answer some of the frequently asked questions related to this topic.

Q1: What is the impact of unbalanced voltage on three-phase induction motors?

A1: Unbalanced voltage can lead to a range of problems, including increased wear on motor components, reduced motor efficiency, and decreased lifespan. The higher the level of voltage imbalance, the higher the increase in temperature in the induction motor.

Q2: How does unbalanced voltage affect the temperature of three-phase induction motors?

A2: The measurement using an infrared thermometer shows a temperature increase of 0.1233 ⁰C/minute for a balanced voltage, 0.47 ⁰C/minute for an imbalance of 1%, and 0.703 ⁰C/minute for an imbalance of 3%. Meanwhile, the measurement of resistance shows a temperature increase of 0.19967 ⁰C/minute for a balanced voltage, 0.567 ⁰C/minute for an imbalance of 1%, and 0.837 ⁰C/minute for an imbalance of 3%.

Q3: What are the consequences of increased temperature in three-phase induction motors?

A3: A significant increase in temperatures in induction motors can cause various problems, including:

Increased wear on the motor component: High temperatures can accelerate the wear process of motor components, such as bearings, coils, and rotors.
Motor use age approach: Increase in temperature impact on the age of the motor, so that the motor is damaged faster.
Decreased Motor Efficiency: Increase in temperature causes a decrease in motor efficiency because some of the energy that should be used to produce power, is wasted as heat.

Q4: How can we prevent voltage imbalance in three-phase induction motors?

A4: To prevent voltage imbalance in three-phase induction motors, it is necessary to take precautions such as:

Installing the stabilizer of the voltage: The stabilizer of the voltage can help maintain the stability of the voltage that enters the induction motor, thereby preventing the voltage imbalance.
Perform regular maintenance: Periodic maintenance can detect the problem of voltage imbalances early and prevent damage to the induction motor.
Ensuring that the supply cable is in good condition: Damaged or peeled supply cable can cause voltage imbalances.

Q5: What are the benefits of maintaining a balanced voltage supply in three-phase induction motors?

A5: Maintaining a balanced voltage supply in three-phase induction motors can lead to several benefits, including:

Increased motor efficiency: Balanced voltage supply can help to reduce energy losses and increase motor efficiency.
Extended motor lifespan: Balanced voltage supply can help to prevent damage to motor components and extend the lifespan of the motor.
Improved motor performance: Balanced voltage supply can help to improve motor performance and reduce the risk of motor failure.

Q6: What are the limitations of this study?

A6: This study has several limitations, including:

Limited sample size: The study was conducted with a limited sample size, which may not be representative of all three-phase induction motors.
Limited measurement methods: The study employed only two measurement methods, which may not be sufficient to fully understand the impact of voltage imbalance on motor temperature.

Conclusion

In conclusion, this Q&A article has provided answers to some of the frequently asked questions related to the analysis of the effect of unbalanced voltage on the temperature of three-phase induction motors. We hope that this article has provided valuable insights and information to readers.
