Introduction

In the world of electricity, alternating currents and voltages are ideally in the form of pure sinus waves. However, the reality on the ground is often different. The use of non-linear loads, such as electronic equipment and welding machines, can cause distortion of waveforms, giving birth to harmonic harmonics. In fact, synchronous generators themselves can be a source of harmonics, even on a smaller scale. Harmonisa is a frequency component that appears as an integer multiple of the basic frequency (50 Hz or 60 Hz). The presence of harmonics has a negative impact on the electric power system, such as:

Increased Power Losses

Harmonisa can increase power losses in the transformer, cable, and other equipment. This is because harmonics can cause the equipment to work harder, leading to increased energy consumption and heat generation.

Disorders of Equipment

Harmonisa can interfere with the performance of equipment such as electric motors, computers, and sensitive electronic equipment. This can lead to reduced performance, overheating, and even equipment failure.

System Instability

Harmonisa can cause electricity system instability and trigger resonance, which has the potential to damage the equipment. This can lead to power outages, equipment damage, and even safety hazards.

Understanding the Cause of Harmonics

Therefore, understanding the cause and finding solutions to suppress harmonisa is important. This study focuses on synchronous generators without burden and analyzes the effect of the stator winding configuration on the emergence of harmonica.

Why Does the Winding Configuration Have an Effect?

The winding configuration of the synchronous generator, including the type of winding (concentrated or distributed) and the coils (full or short), can affect the output voltage waveform. In less optimal configuration can produce a significant voltage of voltage waves.

Research Methodology

This study uses a multisim simulation program to simulate various synchronous generator winding configurations. The data obtained include:

Configuration of Anchor Winding

Kisar coil: The type of coil used in the stator winding.

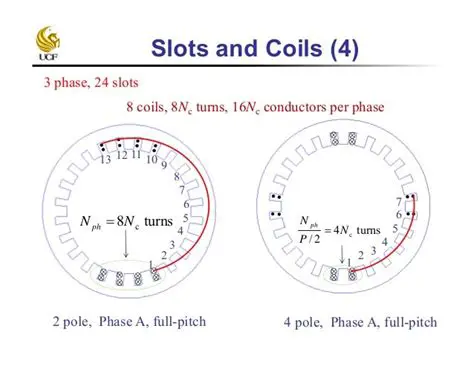

Number of coils per pole per phase: The number of coils used in each phase of the stator winding.
Type of rotor: The type of rotor used in the synchronous generator.

Type of Generator

Synchronous Generator with varying power: The type of generator used in the simulation.

Output Data

Output voltage waveforms: The output voltage waveforms of the synchronous generator, both in one phase and three phases.

Data Analysis

Based on these data, research calculates Total Harmonic Distortion (THD), which is a measure that shows the percentage of harmonic distortion in voltage waves. The results were analyzed to determine the winding configuration that produced the closest voltage waves (with the smallest harmonic content).

Expected Outcome

This research is expected to provide a deeper understanding of the effect of winding configurations on harmonica on synchronous generators without burden. The results of this study can be used as a basis for designing synchronous generators that are more efficient and minimal harmonica. In addition, this result can be a reference for practitioners to choose the appropriate winding configuration to reduce harmonics in the electric power system.

Conclusion

In conclusion, this study aims to analyze the effect of Belitan configuration on harmonisa voltage synchronous generator without load using multisim simulation program. The results of this study can provide valuable insights into the design of synchronous generators that are more efficient and minimal harmonica. By understanding the effect of winding configurations on harmonica, practitioners can choose the appropriate winding configuration to reduce harmonics in the electric power system.

Future Work

Future work can include:

Experimental verification: Verifying the results of this study using experimental methods.
Optimization of winding configuration: Optimizing the winding configuration to minimize harmonica.
Application to real-world systems: Applying the results of this study to real-world systems to reduce harmonics and improve efficiency.
