Performing a Traceroute over GRE

Oct 13, 2025 by pinkandtrash.com 36 views

Introduction

GRE (Generic Routing Encapsulation) is a tunneling protocol used to encapsulate various network protocols within IP packets, allowing them to be transmitted over an IP network. This protocol is widely used in various network architectures, including VPNs (Virtual Private Networks), to provide secure and reliable communication between two endpoints. In this article, we will discuss how to perform a traceroute over a GRE tunnel and understand the output.

What is Traceroute?

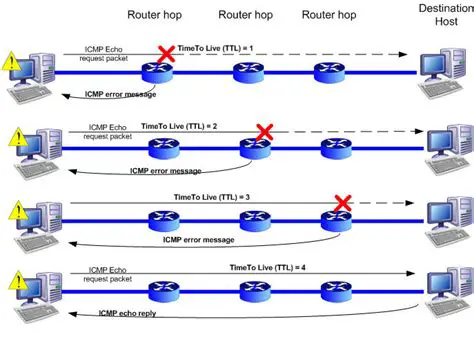

Traceroute is a network debugging tool used to determine the path that packets take to reach a destination host. It works by sending a series of packets with increasing TTL (Time-To-Live) values and observing the responses received from each hop along the path. The output of a traceroute command typically includes the IP address and hostname of each hop, along with the round-trip time (RTT) and packet loss percentage.

Performing a Traceroute over GRE

When performing a traceroute over a GRE tunnel, the output may not accurately reflect the actual path taken by the packets. This is because the GRE tunnel encapsulates the original IP packets, making it difficult for the traceroute tool to determine the actual path.

How Many Hops Will I See in CMD?

If you have created a GRE tunnel between two routers R1 and R2 across the globe with n numbers of hops, and you perform a traceroute from R1 to R2, you will likely see only 2 hops in the output. This is because the GRE tunnel encapsulates the original IP packets, making it appear as if the packets are only traversing two hops: the first hop from R1 to the GRE tunnel endpoint, and the second hop from the GRE tunnel endpoint to R2.

Understanding the Traceroute Output

The traceroute output over a GRE tunnel may look something like this:

Tracing route to 10.10.10.2 over a maximum of 30 hops

1 10.10.10.1 0.000 ms 0.000 ms 0.000 ms 2 10.10.10.3 0.000 ms 0.000 ms 0.000 ms

In this example, the output shows only two hops: the first hop from R1 (10.10.10.1) to the GRE tunnel endpoint (10.10.10.3), and the second hop from the GRE tunnel endpoint to R2 (10.10.10.2).

Troubleshooting GRE Tunnels

When troubleshooting GRE tunnels, it's essential to understand the behavior of traceroute over GRE. If you're experiencing issues with packet loss or high latency, you may want to investigate the GRE tunnel configuration and ensure that it's properly set up.

Conclusion

In conclusion, performing a traceroute over a GRE tunnel can be challenging due to the encapsulation of original IP packets. The output may not accurately reflect the actual path taken by the packets, and you may only see 2 hops in the output. However, understanding the behavior of traceroute over GRE can help you troubleshoot issues with GRE tunnels and ensure that they're properly configured.

GRE Tunnel Configuration

Here's an example of a GRE tunnel configuration on a Cisco router:

interface Tunnel0
  ip address 10.10.10.1 255.255.255.252
  tunnel source FastEthernet0/0
  tunnel destination 10.10.10.3
  tunnel mode gre ip

In this example, the GRE tunnel is configured on interface Tunnel0, with the source IP address set to 10.10.10.1 and the destination IP address set to 10.10.10.3.

Troubleshooting Tips

Here are some troubleshooting tips for GRE tunnels:

Verify that the GRE tunnel is properly configured on both endpoints.
Check the IP addresses and subnet masks of the GRE tunnel endpoints.
Ensure that the GRE tunnel is enabled on both endpoints.
Verify that the GRE tunnel is not experiencing packet loss or high latency.

Conclusion

Frequently Asked Questions

Q: What is the purpose of a GRE tunnel?

A: A GRE tunnel is a tunneling protocol used to encapsulate various network protocols within IP packets, allowing them to be transmitted over an IP network. This protocol is widely used in various network architectures, including VPNs (Virtual Private Networks), to provide secure and reliable communication between two endpoints.

Q: How does a GRE tunnel work?

A: A GRE tunnel works by encapsulating the original IP packets within a new IP packet, which is then transmitted over the IP network. The GRE tunnel endpoint decapsulates the original IP packet and forwards it to its final destination.

Q: What is the difference between a GRE tunnel and a VPN?

A: A GRE tunnel is a tunneling protocol used to encapsulate various network protocols within IP packets, while a VPN is a secure network connection between two endpoints over the internet. A GRE tunnel can be used to create a VPN, but not all VPNs use GRE tunnels.

Q: How do I troubleshoot a GRE tunnel?

A: To troubleshoot a GRE tunnel, you can use various tools and techniques, including:

Verifying that the GRE tunnel is properly configured on both endpoints
Checking the IP addresses and subnet masks of the GRE tunnel endpoints
Ensuring that the GRE tunnel is enabled on both endpoints
Verifying that the GRE tunnel is not experiencing packet loss or high latency

Q: What is the output of a traceroute over a GRE tunnel?

A: The output of a traceroute over a GRE tunnel may not accurately reflect the actual path taken by the packets. You may only see 2 hops in the output, which represent the first hop from the source endpoint to the GRE tunnel endpoint, and the second hop from the GRE tunnel endpoint to the destination endpoint.

Q: How do I configure a GRE tunnel on a Cisco router?

A: To configure a GRE tunnel on a Cisco router, you can use the following commands:

interface Tunnel0
  ip address 10.10.10.1 255.255.255.252
  tunnel source FastEthernet0/0
  tunnel destination 10.10.10.3
  tunnel mode gre ip

Q: What are some common issues with GRE tunnels?

A: Some common issues with GRE tunnels include:

Packet loss or high latency
GRE tunnel endpoint misconfiguration
GRE tunnel encryption issues
GRE tunnel routing issues

Q: How do I secure a GRE tunnel?

A: To secure a GRE tunnel, you can use various techniques, including:

Encrypting the GRE tunnel using IPsec or other encryption protocols
Authenticating the GRE tunnel endpoints using digital certificates or other authentication methods
Implementing access control lists (ACLs) to control traffic flow through the GRE tunnel
Monitoring the GRE tunnel for security threats and anomalies

Q: What are some best practices for GRE tunnel configuration?

A: Some best practices for GRE tunnel configuration include:

Verifying that the GRE tunnel is properly configured on both endpoints
Checking the IP addresses and subnet masks of the GRE tunnel endpoints
Ensuring that the GRE tunnel is enabled on both endpoints
Verifying that the GRE tunnel is not experiencing packet loss or high latency
Implementing security measures to protect the GRE tunnel from unauthorized access or malicious activity.
