Environmentally Friendly Fuel Cell Membrane: Utilizing Natural Rubber Latex

Introduction

The demand for renewable energy is increasing, and fuel cells are one of the promising solutions. Proton exchange membrane (PEM) is a key component in fuel cells, serving to deliver protons from the anode to the cathode. Conventional PEMs are typically made from synthetic materials, which can be expensive and have a negative environmental impact. This study examines the potential of natural rubber latex as an alternative raw material for making the PEM membrane.

Background

Fuel cells are a promising solution for the increasing demand for renewable energy. They offer a clean and efficient way to generate power, with the potential to reduce greenhouse gas emissions and mitigate climate change. However, the production of conventional PEMs can have a negative environmental impact. The use of synthetic materials can lead to the release of toxic chemicals and contribute to pollution.

Natural rubber latex is a biodegradable and renewable resource that can be used as an alternative raw material for making PEMs. It has been modified with grafting maleic anhydride (MNR) and sulfonation of polystyrene (SPS) to improve its properties. The blending process involves the use of a dilute solution of each polymer material, followed by evaporation and casting with variations of temperature, condition, and composition.

Methodology

The characterization of the resulting PEM membrane involves the use of various analytical techniques, including:

FT-IR Spectroscopy analysis: to study the interaction between the anhydride group or succinic acid in the MNR and the sulfonic group (–SO3H) of the SPS.
X-Ray Diffraction (XRD): to study the crystallinity of the membrane.
Differential Scanning Calorimetry (DSC): to study the thermal properties of the membrane.
Thermogravimetric Analysis (TGA): to study the degradation of the membrane.
Dynamic Mechanical Analysis (DMA): to study the mechanical properties of the membrane.

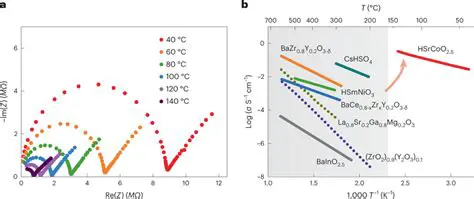

Proton conductivity with impedance analysis: to study the proton conductivity of the membrane.
Water uptake test: to study the water uptake of the membrane.

Results

The results of the FT-IR analysis show that the membrane formed from the SB-C2 solution has a strong interaction between MNR and the sulfonate group from SPS. The thermal study with DSC shows that the presence of PE-G-MA in the mixture of solution does not change the shape of crystallinity and melting point of each solution blend significantly.

The TGA measurement data shows that the process of degradation of the Solution Blend membrane through two stages. The membrane of the SB-C2 solution has the highest degradation rate, indicating a good interaction between MNR and SPS. The DMA study also shows that in the SB-C2 membrane, the transition state of natural rubber is not clearly visible and segmental occurs in the amorphous rubber that is different from different TG values as a result of interactions with SPS.

The results of the SEM analysis show that the SB-C2 morphology as a solid and homogeneous membrane, although there is a grain. The SB-C2 membrane produces a proton conductivity value of 2.97 x 10-3 (SCM-1), approaching the conductivity of Nafion 117 which is 4.83 x 10-3 (SCM-1).

Discussion

The process of forming a PEM membrane with variations in SPS concentration produces attractive results. MNR/SPS/PE-MA membrane with a 10% and 20% concentration of SPS and 20% produces micrological morphology but not homogeneous. While the MNR/SPS/PE-G-MA membrane with a concentration of SPS 40% and 60% produces porous membrane morphology.

The highest proton conductivity is produced by the MNR/SPS/PE-G-MA membrane with a 40% SPS concentration of 3.37 x 10-2 SCM-1. Increasing SPS concentrations linearly increase the value of the water uptake membrane.

Conclusion

This study shows the potential of natural rubber latex as an alternative raw material for making the PEM membrane. The resulting membrane has promising characteristics, such as high proton conductivity and resistance to degradation. The use of natural rubber latex as raw material opens opportunities for the development of a more environmentally friendly and sustainable fuel cell membrane.

Future Work

Future work can focus on the optimization of the blending process and the characterization of the membrane. The use of natural rubber latex as a raw material can also be explored for other applications, such as the production of biodegradable plastics.
Q&A: Environmentally Friendly Fuel Cell Membrane Utilizing Natural Rubber Latex

Introduction

In our previous article, we discussed the potential of natural rubber latex as an alternative raw material for making proton exchange membrane (PEM) fuel cells. The use of natural rubber latex can provide a more environmentally friendly and sustainable solution for fuel cell production. In this article, we will answer some of the most frequently asked questions about the use of natural rubber latex in fuel cell membranes.

Q: What is the main advantage of using natural rubber latex in fuel cell membranes?

A: The main advantage of using natural rubber latex is its biodegradability and renewability. Natural rubber latex is a biodegradable and renewable resource that can be used as an alternative to synthetic materials. This can help reduce the environmental impact of fuel cell production and disposal.

Q: How does the use of natural rubber latex affect the performance of fuel cells?

A: The use of natural rubber latex can improve the performance of fuel cells by increasing proton conductivity and reducing degradation. The natural rubber latex membrane has been shown to have high proton conductivity and resistance to degradation, making it a promising alternative to synthetic membranes.

Q: What are the challenges associated with using natural rubber latex in fuel cell membranes?

A: One of the main challenges associated with using natural rubber latex is the need for further optimization of the blending process. The blending process is critical in determining the properties of the final membrane, and further optimization is needed to achieve the desired performance.

Q: Can natural rubber latex be used in other applications besides fuel cell membranes?

A: Yes, natural rubber latex can be used in other applications besides fuel cell membranes. The use of natural rubber latex can be explored for the production of biodegradable plastics, packaging materials, and other applications where biodegradability and renewability are important.

Q: What are the future prospects for the use of natural rubber latex in fuel cell membranes?

A: The future prospects for the use of natural rubber latex in fuel cell membranes are promising. As the demand for renewable energy continues to grow, the need for sustainable and environmentally friendly solutions will become increasingly important. The use of natural rubber latex can provide a more sustainable and environmentally friendly solution for fuel cell production.

Q: How can readers learn more about the use of natural rubber latex in fuel cell membranes?

A: Readers can learn more about the use of natural rubber latex in fuel cell membranes by reading our previous article and exploring the references cited. Additionally, readers can contact the authors of this article for further information and to discuss potential collaborations.

Conclusion

The use of natural rubber latex in fuel cell membranes offers a promising solution for the production of more sustainable and environmentally friendly fuel cells. By answering some of the most frequently asked questions about the use of natural rubber latex, we hope to provide a better understanding of the potential benefits and challenges associated with this technology.
