The Importance of Abutments in Bridge Structures

Oct 13, 2025 by pinkandtrash.com 133 views

The Ratio of Local Scouring Around Abutments of Vertical Walls Without Wings and With Wings on a Straight Channel: An Experimental Study

Introduction

Abutments are a crucial component in bridge structures, serving as a support and liaison between the bridge and the soil. However, the existence of abutments in rivers can cause significant changes in flow patterns, triggering local scouring in the vicinity. This study aims to understand how the abutment form affects the potential of local scour, with a focus on two types of abutment models: vertical walls without wings and vertical walls with wings. The study was conducted at the Hydraulika Laboratory Department of Civil Engineering, University of North Sumatra, using flumes with specific dimensions and flow rates.

The Importance of Abutments in Bridge Structures

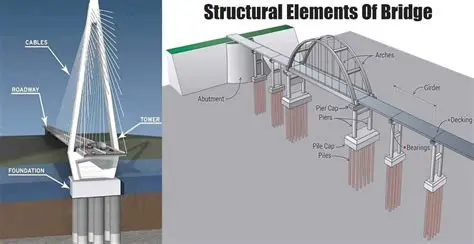

Abutments play a vital role in bridge structures, providing support and stability to the bridge. However, their existence in rivers can cause significant changes in flow patterns, leading to local scouring in the vicinity. Local scouring can pose a risk to the stability of the bridge structure if not well designed. Therefore, it is essential to understand how the abutment form affects the potential of local scour.

Research Methodology

In this study, the material used was sand with a specific size, which passed the filter No. 8 and stuck in the No. Filter No. 100, with a D50 value of 0.51 mm. The testing process lasted for 250 minutes for each experiment, where the researcher measured the pattern and depth of the scour around the two types of abutments in the condition of clear water scour.

Experimental Setup

The study was conducted at the Hydraulika Laboratory Department of Civil Engineering, University of North Sumatra, using flumes with the following dimensions:

Length: 8 meters
Height: 0.3 meters
Width: 0.076 meters
Flow rate: 0.5 liters per second

Research Results

The observations show that in the early minutes, there was an additional scouring depth. Over time, the rate of addition of scouring depth began to slow down until finally approaching the equilibrium scour depth. From the results of the experiment, it was found that the highest scouring in both abutment models occurred on the front side of the upstream. In the abutment of vertical walls without wings, the maximum scouring depth reaches 1.70 meters with a scour width of 110 mm. Meanwhile, in the abutment of vertical walls with wings, the maximum scour depth is 1.20 meters with a scour width of 90 mm.

Analysis and Discussion

Based on these results, it can be concluded that the form of abutment significantly affects the depth and pattern of scour around it. Abutments without wings produce deeper and wider scour, which can pose a risk to the stability of the bridge structure if not well designed. Conversely, abutments with wings show better performance in reducing the depth of the scour. Therefore, it is essential for engineers and construction planners to consider the appropriate form of abutment in order to maximize its function and minimize the potential for damage due to scouring.

Practical Implications

In practice, the ideal selection of abutment forms must not only pay attention to structural aspects but also environmental factors and river flows. Thus, the right design can help reduce the negative impact of local scouring and maintain the sustainability of the bridge structure. This research is an important reference for the design of abutments in the context of civil engineering and hydraulics.

Conclusion

This study aims to understand how the abutment form affects the potential of local scour, with a focus on two types of abutment models: vertical walls without wings and vertical walls with wings. The study was conducted at the Hydraulika Laboratory Department of Civil Engineering, University of North Sumatra, using flumes with specific dimensions and flow rates. The results show that the form of abutment significantly affects the depth and pattern of scour around it. Abutments without wings produce deeper and wider scour, while abutments with wings show better performance in reducing the depth of the scour. Therefore, it is essential for engineers and construction planners to consider the appropriate form of abutment in order to maximize its function and minimize the potential for damage due to scouring.

Recommendations

Based on the results of this study, the following recommendations can be made:

Engineers and construction planners should consider the appropriate form of abutment in order to maximize its function and minimize the potential for damage due to scouring.
The design of abutments should take into account both structural and environmental factors, including river flows and environmental conditions.
Further research is needed to investigate the effects of different abutment forms on local scouring in various river conditions.

Limitations of the Study

This study has several limitations, including:

The study was conducted using a specific type of sand and flow rate, which may not be representative of all river conditions.
The study only investigated two types of abutment models, and further research is needed to investigate the effects of different abutment forms on local scouring.
The study did not consider the effects of other factors, such as turbulence and sediment transport, on local scouring.

Future Research Directions

Based on the results of this study, the following future research directions can be suggested:

Investigate the effects of different abutment forms on local scouring in various river conditions.
Investigate the effects of turbulence and sediment transport on local scouring.
Develop a numerical model to simulate local scouring around abutments.

Conclusion

In conclusion, this study aims to understand how the abutment form affects the potential of local scour, with a focus on two types of abutment models: vertical walls without wings and vertical walls with wings. The study was conducted at the Hydraulika Laboratory Department of Civil Engineering, University of North Sumatra, using flumes with specific dimensions and flow rates. The results show that the form of abutment significantly affects the depth and pattern of scour around it. Abutments without wings produce deeper and wider scour, while abutments with wings show better performance in reducing the depth of the scour. Therefore, it is essential for engineers and construction planners to consider the appropriate form of abutment in order to maximize its function and minimize the potential for damage due to scouring.
Frequently Asked Questions (FAQs) About Local Scouring Around Abutments

Q: What is local scouring?

A: Local scouring is the erosion of the riverbed or riverbank around a structure, such as a bridge abutment, due to the flow of water. It can cause significant damage to the structure and the surrounding environment.

Q: What are the causes of local scouring?

A: The causes of local scouring include:

Flow velocity: High flow velocities can cause erosion of the riverbed or riverbank.
Flow depth: Deep flows can cause erosion of the riverbed or riverbank.
Sediment transport: Sediment transport can cause erosion of the riverbed or riverbank.
Turbulence: Turbulent flows can cause erosion of the riverbed or riverbank.
Abutment form: The form of the abutment can affect the flow of water and cause erosion of the riverbed or riverbank.

Q: What are the effects of local scouring?

A: The effects of local scouring include:

Damage to the structure: Local scouring can cause significant damage to the structure, including erosion of the foundation and collapse of the structure.
Environmental damage: Local scouring can cause environmental damage, including erosion of the riverbed or riverbank and loss of aquatic habitats.
Economic damage: Local scouring can cause economic damage, including loss of property and disruption of transportation.

Q: How can local scouring be prevented or mitigated?

A: Local scouring can be prevented or mitigated by:

Designing the abutment to reduce flow velocities and depths.
Using sedimentation basins or other sediment control measures.
Implementing erosion control measures, such as riprap or geotextiles.
Monitoring the flow of water and adjusting the design of the abutment as needed.

Q: What are the benefits of using abutments with wings?

A: The benefits of using abutments with wings include:

Reduced flow velocities and depths: Abutments with wings can reduce flow velocities and depths, which can help to prevent local scouring.
Improved sediment transport: Abutments with wings can improve sediment transport, which can help to reduce erosion of the riverbed or riverbank.
Increased stability: Abutments with wings can increase the stability of the structure, which can help to prevent collapse.

Q: What are the limitations of using abutments with wings?

A: The limitations of using abutments with wings include:

Increased cost: Abutments with wings can be more expensive than traditional abutments.
Increased complexity: Abutments with wings can be more complex to design and construct than traditional abutments.
Limited applicability: Abutments with wings may not be suitable for all types of rivers or structures.

Q: What are the future research directions for local scouring around abutments?

A: The future research directions for local scouring around abutments include:

Investigating the effects of different abutment forms on local scouring.
Developing numerical models to simulate local scouring around abutments.
Investigating the effects of turbulence and sediment transport on local scouring.
Developing new technologies and materials to prevent or mitigate local scouring.

Q: What are the practical implications of this research?

A: The practical implications of this research include:

Improved design of abutments to reduce local scouring.
Increased stability of structures due to reduced flow velocities and depths.
Improved sediment transport and reduced erosion of the riverbed or riverbank.
Reduced economic and environmental damage due to local scouring.

Q: What are the limitations of this research?

A: The limitations of this research include:

Limited scope: This research only investigated two types of abutment models.
Limited applicability: This research may not be applicable to all types of rivers or structures.
Limited data: This research was based on limited data and may not be representative of all river conditions.
