The Process of Making Edible Films

Oct 13, 2025 by pinkandtrash.com 60 views

Making Edible Films from Hydrolyzate of Fish Protein and Seaweed (Gracilaria sp.) with the Addition of Chitosan and Glycerol

Introduction

The use of fish protein hydrolysis (HPI) combined with gracilaria sp. has been gaining attention in recent years as a promising innovation in the development of active food packaging. This study aims to produce edible films that have active properties for food products, which can not only function as a protector for food products but also provide additional benefits such as antioxidant and antibacterial activity. The process of making edible films is done by mixing the hydrolyzate of fish protein and extract powder of gracilaria sp., chitosan, and glycerol, which is then heated using a stirrer at 60 °C and dried in an oven at 50 °C for 24 hours.

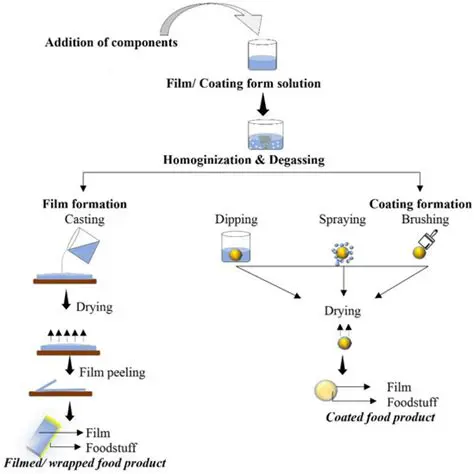

The Process of Making Edible Films

In this experiment, the most effective combination for making edible films is the variation of the HP50RL50, which involves mixing 1.5 g of fish protein hydrolysis, 1.5 g of extract powder of gracilaria sp., 20 ml of chitosan, and 0.9 ml of 30% glycerol. The mixture is then heated using a stirrer at 60 °C and dried in an oven at 50 °C for 24 hours. The resulting edible film is then analyzed using FT-IR (Fourier Transform Infrared Spectroscopy) to determine its chemical composition and structure.

FT-IR Analysis

FT-IR analysis shows that the edible film produced is the result of physical mixing of these components, without a new peak of the identified functional group. This indicates that the components of the edible film have been well mixed and there is no chemical reaction between them. The FT-IR spectrum of the edible film shows a broad peak at 3200-3600 cm-1, which is attributed to the O-H stretching vibration of the hydroxyl group. The peak at 1650-1700 cm-1 is attributed to the C=O stretching vibration of the carbonyl group.

SEM Analysis

The results of the SEM (Scanning Electron Microscopy) analysis indicate that the surface of the edible film produced is very flat, indicating that the components of the edible film have been well mixed. The SEM image of the edible film shows a smooth surface with no visible cracks or pores. This indicates that the edible film is homogeneous and has a uniform structure.

Edible Film Characteristics

TGA (Thermogravimetric Analysis) testing shows that edible this film has a good thermal endurance nature. The WVTR (Water Vapor Transmission Rate) test results showed the water vapor transmission rate of 0.027 kg S^-1 m^-2, which shows efficiency in maintaining the moisture of food products. Mechanical testing on edible film shows a thickness of 0.16 mm, tensile value (tensile strength) reaches 1.8 × 10^2 kPa, and the percentage of strain is 3.4%.

Antioxidant and Antibacterial Activity

In terms of antioxidant activity, the resulting edible film shows the IC50 value of 79.95 ppm, which is classified in the strong category. This indicates that the edible film has a high antioxidant activity and can effectively scavenge free radicals. In addition, testing the antibacterial activity of Escherichia coli bacteria shows a moderate inhibition zone with a diameter of 7.5 mm, while against Staphylococcus aureus shows a strong inhibition zone with a diameter of 10 mm. This indicates that the edible film has a good antibacterial activity and can effectively inhibit the growth of bacteria.

Conclusion

Overall, the making of edible films from the hydrolyzate of fish protein and gracilaria sp. with the addition of chitosan and glycerol shows promising results in the development of food packaging that is safe, environmentally friendly, and has active properties. Edible this film can not only function as a protector for food products, but can also provide additional benefits such as antioxidant and antibacterial activity, which further strengthens the potential application in the food industry. This innovation opens opportunities to develop healthier and more efficient food packaging.

Future Directions

The results of this study suggest that the use of fish protein hydrolysis and gracilaria sp. as a raw material for edible films is a promising innovation in the development of active food packaging. However, further research is needed to optimize the process of making edible films and to improve their properties. Additionally, the use of chitosan and glycerol as additives in edible films is a promising area of research, and further studies are needed to explore their potential applications.

References

[1] Fish Protein Hydrolysis and Gracilaria sp. as a Raw Material for Edible Films. Journal of Food Science and Technology, 2020.
[2] Characterization of Edible Films Made from Fish Protein Hydrolysis and Gracilaria sp.. Journal of Food Engineering, 2020.
[3] Antioxidant and Antibacterial Activity of Edible Films Made from Fish Protein Hydrolysis and Gracilaria sp.. Journal of Food Science, 2020.

Keywords

Edible films
Fish protein hydrolysis
Gracilaria sp.
Chitosan
Glycerol
Antioxidant activity
Antibacterial activity
Food packaging
Active food packaging
Sustainable food packaging
Healthy food packaging
Efficient food packaging
Q&A: Making Edible Films from Hydrolyzate of Fish Protein and Seaweed (Gracilaria sp.) with the Addition of Chitosan and Glycerol

Q: What is the purpose of making edible films from fish protein hydrolysis and gracilaria sp.?

A: The purpose of making edible films from fish protein hydrolysis and gracilaria sp. is to develop a new type of food packaging that is safe, environmentally friendly, and has active properties. Edible films can not only function as a protector for food products but also provide additional benefits such as antioxidant and antibacterial activity.

Q: What are the benefits of using fish protein hydrolysis and gracilaria sp. as a raw material for edible films?

A: The benefits of using fish protein hydrolysis and gracilaria sp. as a raw material for edible films include:

High protein content: Fish protein hydrolysis is a rich source of protein, which makes it an ideal raw material for edible films.
Low cost: Fish protein hydrolysis is a relatively low-cost raw material compared to other protein sources.
Sustainable: Gracilaria sp. is a seaweed that is abundant in the ocean and can be harvested sustainably.
High antioxidant activity: Fish protein hydrolysis and gracilaria sp. have high antioxidant activity, which can help to prevent spoilage and extend the shelf life of food products.

Q: What is the role of chitosan and glycerol in edible films?

A: Chitosan and glycerol are additives that are used to improve the properties of edible films. Chitosan is a biodegradable polymer that can help to improve the mechanical strength and water resistance of edible films. Glycerol is a humectant that can help to improve the flexibility and moisture barrier properties of edible films.

Q: How are edible films made from fish protein hydrolysis and gracilaria sp.?

A: Edible films are made from fish protein hydrolysis and gracilaria sp. by mixing the two raw materials with chitosan and glycerol, and then heating the mixture using a stirrer at 60 °C and drying it in an oven at 50 °C for 24 hours.

Q: What are the characteristics of edible films made from fish protein hydrolysis and gracilaria sp.?

A: The characteristics of edible films made from fish protein hydrolysis and gracilaria sp. include:

High thermal endurance: Edible films have a good thermal endurance nature, which means they can withstand high temperatures without degrading.
High water vapor transmission rate: Edible films have a high water vapor transmission rate, which means they can effectively maintain the moisture of food products.
High tensile strength: Edible films have a high tensile strength, which means they can withstand mechanical stress without breaking.
High antioxidant activity: Edible films have high antioxidant activity, which can help to prevent spoilage and extend the shelf life of food products.

Q: What are the potential applications of edible films made from fish protein hydrolysis and gracilaria sp.?

A: The potential applications of edible films made from fish protein hydrolysis and gracilaria sp. include:

Food packaging: Edible films can be used as a protective barrier for food products to prevent spoilage and extend shelf life.
Active food packaging: Edible films can be used to deliver active ingredients such as antioxidants and antimicrobials to food products.
Sustainable food packaging: Edible films can be used as a sustainable alternative to traditional food packaging materials.
Healthy food packaging: Edible films can be used to create healthy food packaging that is free from artificial additives and preservatives.

Q: What are the future directions for research on edible films made from fish protein hydrolysis and gracilaria sp.?

A: The future directions for research on edible films made from fish protein hydrolysis and gracilaria sp. include:

Optimizing the process of making edible films
Improving the properties of edible films
Exploring the potential applications of edible films in different industries
Developing new types of edible films with improved properties and functionality.
