Introduction

The field of electrospinning has gained significant attention in recent years due to its potential in producing nano fibers with unique properties. These nano fibers have a wide range of applications in various fields, including textiles, medicine, and filtration. However, the production of these nano fibers requires a precise and controlled electrospinning process, which can be challenging to achieve. In this study, we designed an electrospinning tool that utilizes a flyback as a high voltage power supply and a stepper motor as a syringe drive to produce nano fibers from polymer material, specifically polyvinyl alcohol (PVA).

Designing Electrospinning Tools with Flyback as High Voltage Power Supplies: Towards Nano Fiber Production

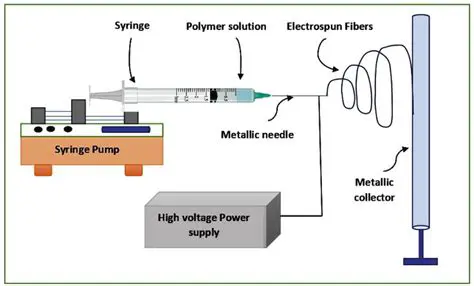

The electrospinning tool designed in this study consists of a horizontal configuration with collectors on the front and coated with aluminum foil. This allows the polymer solution jet to move horizontally to the collector. The PVA solution is injected into the spinneret, and the electrospinning tool is operated in a voltage range of 15 kV - 25 kV with a spinneret-collector distance of 8 cm. The results showed success in producing nano fibers with non-continuous morphology and diameter ranging from 125-198 Nm.

The use of a flyback as a high voltage power supply in the electrospinning device has several advantages. High efficiency: Flyback is able to produce high voltage with high efficiency, thus minimizing energy loss and producing a more stable electrospinning process. Compact size: Flyback has a relatively small size, so that it allows the design of electrospinning tools that are more concise and easy to implement. Voltage control: Flyback can be controlled to regulate the resulting output voltage, allowing precision settings in the electrospinning process.

The Uniqueness of this Electrospinning Tool Design

The horizontal system design in this electrospinning tool allows easier observations to the process of forming nano fibers. The use of a stepper motor ensures the flow of polymer solution is controlled and accurate, thus helping in producing nano fibers with a uniform diameter. The aluminum foil in the collector functions as a conductive nano fiber collector surface, so as to minimize the static charge effect on the resulting nano fiber.

Potential for Development and Application

This study opens opportunities for further development in making electrospinning tools with more optimal and efficient designs. With a more precise voltage control and the ability to control the speed of the motor stepper, nano fibers can be produced with morphology and more uniform diameters. Nano PVA fiber produced through this process has a broad application potential in various fields, such as:

Textile: Nano PVA fiber can increase the resistance, strength, and absorption of fabric.
Medical: Nano PVA fiber can be used in the manufacture of wound pads, medical filters, and tissue scaffold.
Filter: Nano PVA fiber can be used in making air filters and more efficient water filters.
Sensor: Nano PVA fiber can be used in making sensors that can detect environmental changes, such as humidity or temperature.

Conclusion

Making electrospinning tools with flyback as a high voltage power supply succeeded in producing Nano PVA fibers with non-continuous morphology and diameter ranging from 125-198 Nm. This research opens opportunities for further development in the design and application of electrospinning tools, as well as opening the potential for the use of Nano PVA fiber in various fields.

Future Work

Future work can focus on optimizing the design of the electrospinning tool to improve the production of nano fibers with uniform morphology and diameter. Additionally, the use of different types of polymer materials and the development of new applications for nano PVA fibers can be explored.

Limitations

The study has some limitations, including the use of a single type of polymer material and the limited range of voltage used in the electrospinning process. Future studies can focus on exploring the use of different types of polymer materials and optimizing the electrospinning process to produce nano fibers with more uniform morphology and diameter.

Conclusion

In conclusion, the design of an electrospinning tool with a flyback as a high voltage power supply and a stepper motor as a syringe drive has shown promising results in producing nano fibers from PVA solution. The use of a flyback as a high voltage power supply has several advantages, including high efficiency, compact size, and voltage control. The horizontal system design and the use of a stepper motor ensure the flow of polymer solution is controlled and accurate, thus helping in producing nano fibers with a uniform diameter. The aluminum foil in the collector functions as a conductive nano fiber collector surface, so as to minimize the static charge effect on the resulting nano fiber. This study opens opportunities for further development in making electrospinning tools with more optimal and efficient designs, as well as opening the potential for the use of Nano PVA fiber in various fields.

Introduction

In our previous article, we discussed the design of an electrospinning tool that utilizes a flyback as a high voltage power supply and a stepper motor as a syringe drive to produce nano fibers from polymer material, specifically polyvinyl alcohol (PVA). In this Q&A article, we will address some of the frequently asked questions related to the design and application of electrospinning tools with flyback as a high voltage power supply.

Q: What is the advantage of using a flyback as a high voltage power supply in electrospinning?

A: The use of a flyback as a high voltage power supply in electrospinning has several advantages, including high efficiency, compact size, and voltage control. Flyback is able to produce high voltage with high efficiency, thus minimizing energy loss and producing a more stable electrospinning process.

Q: How does the horizontal system design in the electrospinning tool affect the production of nano fibers?

A: The horizontal system design in the electrospinning tool allows easier observations to the process of forming nano fibers. This design also enables the use of a stepper motor to control the flow of polymer solution, which helps in producing nano fibers with a uniform diameter.

Q: What is the role of aluminum foil in the collector of the electrospinning tool?

A: The aluminum foil in the collector functions as a conductive nano fiber collector surface, so as to minimize the static charge effect on the resulting nano fiber. This helps in producing nano fibers with a uniform diameter and morphology.

Q: What are the potential applications of nano PVA fibers produced through this process?

A: Nano PVA fibers produced through this process have a broad application potential in various fields, including textiles, medicine, filtration, and sensors. These fibers can be used to increase the resistance, strength, and absorption of fabric, manufacture wound pads, medical filters, and tissue scaffold, make air filters and more efficient water filters, and detect environmental changes, such as humidity or temperature.

Q: How can the design of the electrospinning tool be optimized to improve the production of nano fibers?

A: The design of the electrospinning tool can be optimized by improving the voltage control and the ability to control the speed of the motor stepper. This can be achieved by using more advanced control systems and optimizing the design of the electrospinning tool to improve the flow of polymer solution and the collection of nano fibers.

Q: What are the limitations of the study and how can they be addressed in future work?

A: The study has some limitations, including the use of a single type of polymer material and the limited range of voltage used in the electrospinning process. Future studies can focus on exploring the use of different types of polymer materials and optimizing the electrospinning process to produce nano fibers with more uniform morphology and diameter.

Q: What are the future directions for the development of electrospinning tools with flyback as a high voltage power supply?

A: The future directions for the development of electrospinning tools with flyback as a high voltage power supply include optimizing the design of the electrospinning tool to improve the production of nano fibers, exploring the use of different types of polymer materials, and developing new applications for nano PVA fibers.

Conclusion

In conclusion, the design of an electrospinning tool with a flyback as a high voltage power supply and a stepper motor as a syringe drive has shown promising results in producing nano fibers from PVA solution. The use of a flyback as a high voltage power supply has several advantages, including high efficiency, compact size, and voltage control. The horizontal system design and the use of a stepper motor ensure the flow of polymer solution is controlled and accurate, thus helping in producing nano fibers with a uniform diameter. This study opens opportunities for further development in making electrospinning tools with more optimal and efficient designs, as well as opening the potential for the use of Nano PVA fiber in various fields.
